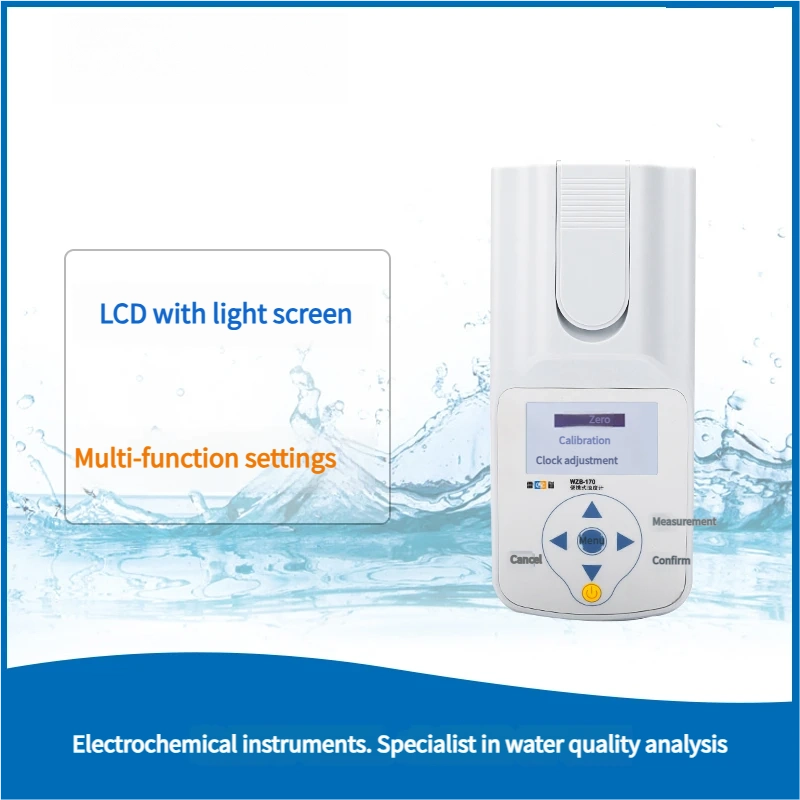

This compact turbidity meter, the WZB-170, is cheap and works with ISO 7027 and HJ 1075. The light source is an 850nm LED, it counts scattered light, and the color is set by itself. The tool has two ranges from 0 to 200NTU, automatic swapping, zero adjustment, and the ability to run on DC power or USB power. You can prove who you are outside and on your phone thanks to the IP65 waterproof and dustproof design. It’s simple to use and keep up, so it’s great for checking the turbidity often.
★★★★★
Features
- LED light source, using 850 nm wavelength, meets ISO 7027 standard and HJ 1075 standard
- Adopting the principle of scattered light measurement and automatic chromaticity compensation
- Automatic range switching, automatic zeroing
- Support time display and setting, convenient for observing calibration time
- Support zero and multi-point calibration
- Equipped with undervoltage prompt function, supports battery and USB power supply, and supports automatic shutdown
- IP65 protection level, good waterproof and dustproof performance
- Provide turbidity calibration solution as a matching solution
Configuration List
- WZB-170 portable turbidity meter
- USB power cord (USB to Φ 5.5 × 2.1)
- Power adapter HW-050100C01 (5V, 1A)
- AA (No. 5) alkaline battery
- Product Qualification Certificate
- 2 turbidity bottles (Φ 25 × 60, marked with “+”)
- USB communication cable (A male head to MINI male head, L=1M)
- Short handled cross screwdriver
- Instruction Manual
Parameters
| Category | Specifications |
|---|---|
| Measurement Principle | Scatter method, automatic color compensation |
| Range & Accuracy | Measurement range: 0.00-20.00NTU / 20.0-200.0NTU (auto-range); Error: ≤±8%; Repeatability: ≤1.0% |
| Core Performance | Zero drift: ±0.5%FS/30min; Stability: ≤±1.0%FS/30min; 850nm LED light source |
| Calibration | Up to 3 points (2NTU/20NTU/200NTU) + zero calibration; Clock setting function |
| Power Supply | 4×AA alkaline batteries; USB power supply (5V, 1A); Low voltage prompt; Auto-shutdown |
| Physical Specifications | Dimension: 220×100×80mm (L×W×H); Weight: ~0.8kg; Protection class: IP65; Operating temp: 5-35℃; Relative humidity: ≤85% |
| Standard Configuration | Host: WZB-170; 2 turbidity bottles (Φ25×60); USB communication/power cables; Power adapter; AA batteries; Screwdriver; Manual & Certificate |
Core Highlights
- Lightweight (0.8 kg), small, and easy to carry; IP65 waterproof and dustproof; good for outdoor and industrial use;
- Minimalist operation: automatic range changeover and zero adjustment, easy 9-key physical operation, clock setting, and simple calibration time recording;
- Dual power guarantee: AA battery and USB dual power supply with an undervoltage prompt to keep the power on during on-site testing and meet the needs for continuous operation;
- It has an 850nm light source and automatically adjusts the color of the sample so that the color doesn’t affect the measurement results and the data stays stable.
- Very cost-effective: it can detect 0–200 NTU and comes with a lot of accessories. It doesn’t need much maintenance for simple turbidity screening.
Featured Applications
- Monitoring the environment: checking the turbidity of surface water and groundwater in the wild, and basic water quality screening;
- Water industry: taking samples of the quality of water from waterworks, township water supply stations, and mobile testing of water stations that are far away;
- Industrial site: Quickly finding turbidity in normal industrial water and circulating water, as well as basic monitoring of production processes;
- Livelihood scenario: Checking the turbidity of swimming pool water and landscaping water every day to make sure the water is safe to drink.
Daily maintenance and precautions
Key points for operation and use
- Preparing samples Choose a haze-free turbidity bottle, rinse it with zero-turbidity water, then rinse the sample 2-3 times. Fill the bottle to the “+” mark and wipe out bubbles and fingerprints on the bottle wall;
- To calibrate, press “Zero / 0” to use automatic zero adjustment, then “Calibration / 7” to start the calibration procedure. Put standard samples in order of concentration, pick the standard value, and then click “OK.” Once it’s steady, wait one minute to calibrate;
- Put the sample bottle on the instrument’s line to measure and save data. When the reading stabilizes, press “Store /.” to save time, operator, etc. Optimize fluctuating data with “Average”.
- Power switch: When used outdoors, install 4 AA batteries, and indoors, connect a computer or power adapter through a USB cable for power supply.
Key points for preparing standard samples
- Zero turbidity water: Filter distilled water through a microporous membrane with a pore size of ≤ 0.2 µ m at least twice to obtain zero turbidity water;
- Standard solution: Use Formazine standard substance (such as GBW12001 400NTU), or prepare 400NTU mother liquor according to ISO 7027 method and dilute it to 2NTU/20NTU/200NTU standard sample;
- Storage requirements: The mother liquor should be refrigerated at 4-8 ℃ and stored away from light. Diluted standard samples should be prepared as needed and should not be stored for a long time.
Technical Support
Top 6 Industrial Gas Analyzers Manufacturers 2025
Introduction to Industrial Gas Analyzers Industrial gas analyzers are critical instruments used across numerous sectors to measure and monitor the composition of gas mixtures in various processes. These sophisticated devices…
6 Best Industrial Gas Detector Manufacturers in the World
With industrial safety standards becoming more stringent each year, organizations worldwide are investing in high-precision gas detection technologies. Choosing the Best industrial gas detector manufacturers ensures operational safety, regulatory compliance,…
9 Best Portable Carbon Dioxide Detector 2025 – Complete Buying Guide
Why You Need the Best Portable Carbon Dioxide Detector In today’s world where air quality monitoring has become increasingly important, having the best portable carbon dioxide detector is crucial for…
Top 7 portable combustion analyzer Tested
Introduction to Portable Combustion Analyzers A portable combustion analyzer is an essential diagnostic tool for technicians, engineers, and facility managers working with combustion systems. These sophisticated instruments measure and analyze…
The WZB-170 portable turbidity meter has the core advantages of portability, simplicity, and high cost-effectiveness, covering the conventional 0-200NTU turbidity detection needs. Automatic range switching, dual power supply mode, and IP65 protection design, suitable for multi scene mobile detection, with low operation and maintenance threshold, providing stable and reliable rapid screening solutions for environmental monitoring, water inspection, industrial basic quality control, etc.
