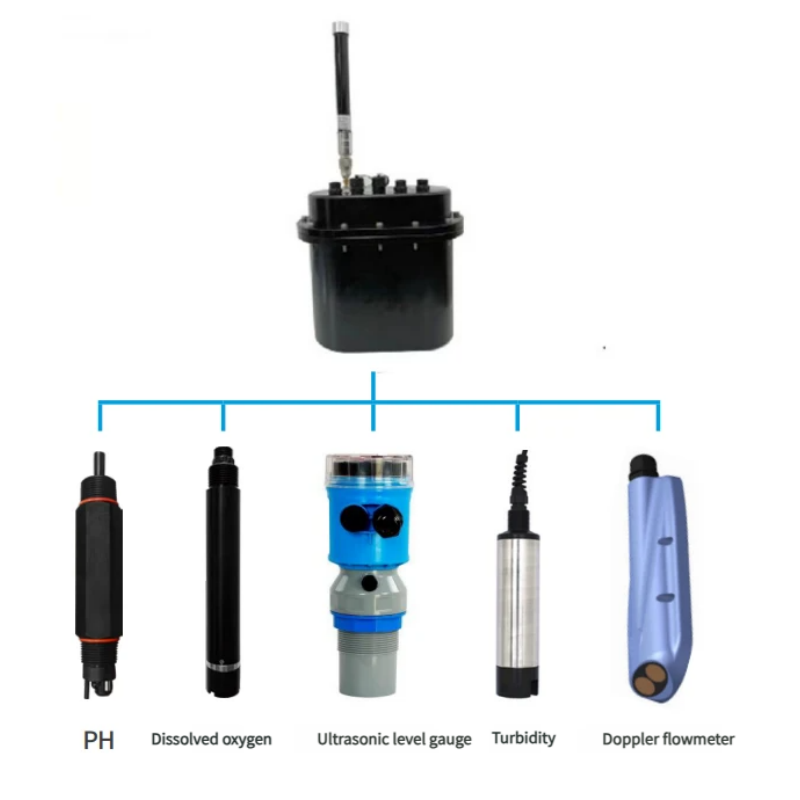

The KS-2000 multi parameter monitoring system is IP68-rated, low-power, and waterproof. It can measure the level of a liquid, the flow rate, the pH, the COD, and other water quality indicators. It works with cloud platforms and mobile apps, has a long battery life, uses little power, is easy to maintain, and has a 4G wireless connection. It helps with flood alarms and water quality in hard-to-reach places like city lines and sewage outputs.
★★★★★
Multi Parameter Monitoring System Features
Specifications
| Category | Specification |
|---|---|
| Monitoring Parameters | Liquid level, flow rate, pH, conductivity, temperature; Expandable: ammonia nitrogen, COD, dissolved oxygen, turbidity, etc. |
| Measuring Range | Liquid level: 0-20m; Flow rate: 0.02~5.00m/spH: 0~14pH; Conductivity: 0~5000μS/cmTemperature: 0~50℃; Ammonia nitrogen: 0~100mg/LCOD: 0~370mg/L; Dissolved oxygen: 0~20mg/LTurbidity: 0~1000NTU |
| Accuracy | Liquid level: 0.1 class; Flow rate: ±1% of measured valuepH: ±0.1pH; Conductivity: ±1.5%F.S.COD: ±5%F.S.; Ammonia nitrogen: ≤±10% of reading or 1mg/L (whichever is larger) |
| Protection Grade | IP68 (Whole device) |
| Power Supply | Standard: 12V40AH lithium thionyl chloride battery; Customizable: 114Ah~380Ah; Optional: rechargeable lithium battery |
| Housing Material | Stainless steel |
| Data Acquisition | RS-485 bus, Modbus/RTU protocol; Minimum acquisition interval: 10mins (customizable) |
| Data Transmission | 4G wireless transmission (Dual band 900/1800), Baud rate: 9600 |
| Data View | Cloud platform, Mobile APP; Support real-time data, historical curve, Excel data export |
| Alarm Function | Customizable threshold, WeChat alarm push for abnormal parameters |
| Waterproof Box Size | 240×140×215mm |
| External Interface | Aviation plug (data acquisition), Fiberglass antenna (wireless transmission) |
| Fixing Method | Side wall hanging type (adjustable according to water depth) |
| Working Environment | Temperature: 0~45℃; Suitable for manhole, drainage pipe network, sewage outlet, etc. |
Featured Applications
- Monitoring the liquid level, flow rate, and water quality of urban drainage pipes and manholes, warning of urban waterlogging, and keeping an eye on the water quality status of the pipe network in real time.

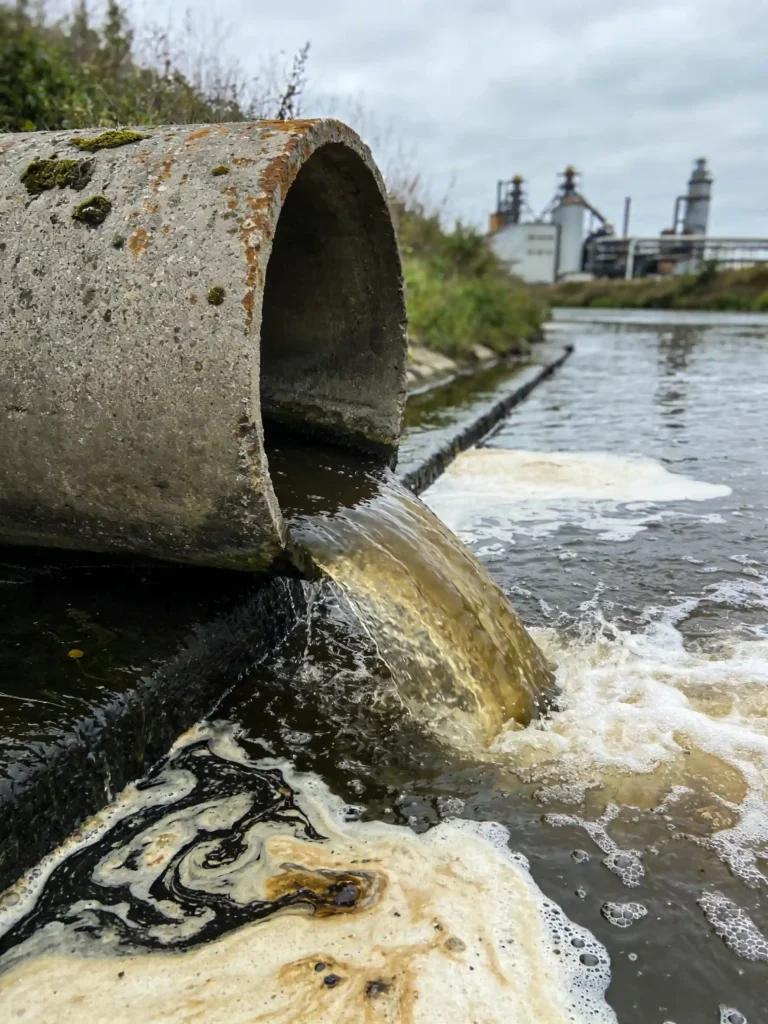

- Monitoring of river discharge outlets: Monitoring of river and lake discharge outlets using several parameters, accurate placement of outlets with too much discharge, and help with water environment supervision.
- Sponge City Monitoring: Monitoring the water level, runoff flow, and water quality in the area where sponge cities are being built gives data that can be used to manage sponge cities smartly.
- Sewage treatment plants: keeping an eye on the inlet and exit of sewage treatment plants and the major pipes that carry sewage from the city. This helps water plants understand how the quality of sewage is changing and makes sure that the treatment processes stay constant.
Daily maintenance and precautions
A Short Guide to Setting Up
- The place where the installation will take place should be cool, dry, not in direct sunlight, and have a working temperature between 0 and 45 °C. There should be anti-fall netting there to keep equipment from falling and becoming broken.
- The fixed approach keeps the equipment in place without moving or shaking because of the side wall suspension. The depth of the water at the site decides where the handle will be fixed.
- Check that all the sensors, wiring, and waterproof boxes are in good shape and that the equipment wasn’t damaged during transportation before you install it. Also, look for looseness in the interfaces.
- Wiring: Use an aircraft plug to connect the sensor to the host. This will keep water out and make sure the connection is tight.
Calibration of the sensor
- If the measured values are wrong or unstable after cleaning the sensor or replacing elements that are likely to break, you need to do single point or two-point calibration.
- Choose the right standard solution for the type of sensor you have, and then look at the sensor manual for instructions on how to calibrate it and how to communicate with it.
- After calibrating the sensor, reset it and check the measurement data on the cloud platform to make sure it is correct and stable before you start monitoring again.
