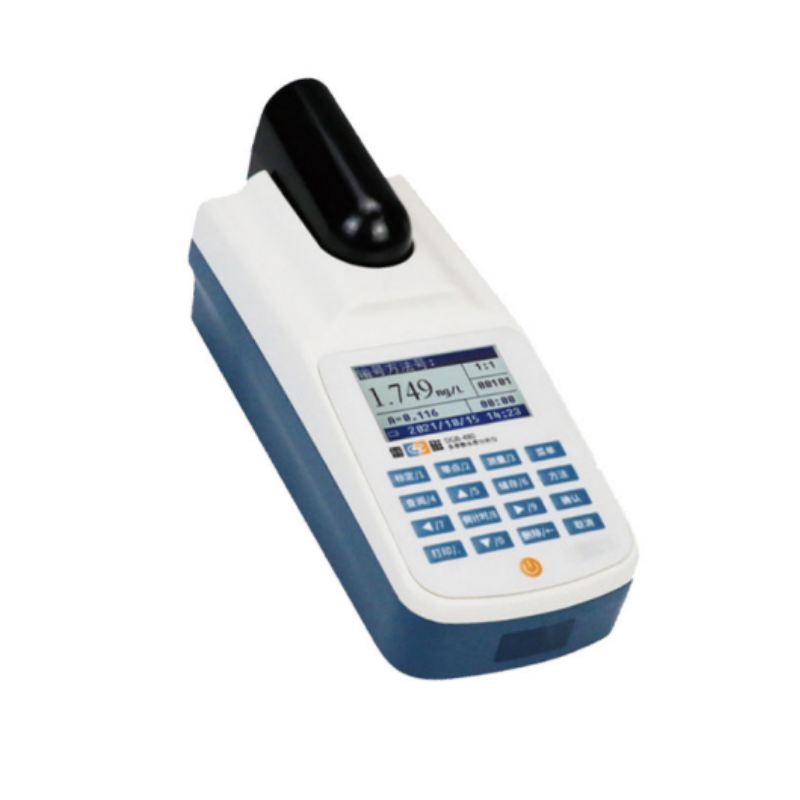

Portable Multi Parameter Analyzer DGB-480

Eight wavelength light sources and modern LED optical detecting technologies power the DGB-480 field quick detection multi parameter analyzer. Chromatocity, turbidity, ammonia nitrogen, total phosphorus, total nitrogen, residual chlorine, heavy metals, and 60 other water quality indicators are swiftly detected. This tiny, easy-to-use device examines drinking, pool, surface, sewage, and other water. For water, illness control, businesses, emergency monitoring, and environmental protection, it detects accurately.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Multi parameter analyzer characteristics

  • LED testing technology with built-in 8 wavelength colorimetric measurements (365nm, 420nm, 470nm, 515nm, 540nm, 620nm, 650nm, 850nm)
  • The reading modes include absorbance, transmittance, and concentration
  • Built in multiple measurement methods for direct measurement, greatly saving analysis time
  • Directly read measurement results without conversion, automatically lock measurement values
  • Easy to operate, can directly use a colorimetric tube as a measuring container
  • Users can customize up to 100 measurement methods and choose from multiple measurement units
  • It has automatic shutdown function, power-off protection function, and battery reminder function. The automatic shutdown time can be set to reduce power consumption and ensure data security
  • Supports lithium battery power supply or direct power supply through USB port
  • Equipped with USB interface, supporting connection with printer
  • Can store up to 2000 sets of measurement data
  • It has a good Chinese human-machine interface, supports IP65 protection level, and has good anti drop and seismic performance

Core Technical Parameters

ItemSpecification
Measuring Wavelengths365nm, 420nm, 470nm, 515nm, 540nm, 620nm, 650nm, 850nm
Color Measurement Range0.0~100.0 PCU
Turbidity Measurement Range0.50~50.0 NTU; 50.0~500 NTU
Absorbance Range0.000~2.000
Transmittance Range0.0~100.0 %
Error of Color±3% or ±1 PCU
Error of Turbidity±8% or ±0.5 NTU
Data Storage2000 sets
Display4.3-inch color touch screen
Protection GradeIP65
Power SupplyRechargeable Li-ion battery / USB power supply
Dimensions105×241×90 mm
Net WeightApprox. 0.6 kg

Featured Applications

  • To make sure that drinking water is safe and meets all the rules, inspectors go to the sites of pipeline networks, secondary water suppliers, and water supply plants.
  • Real-time checks of residual chlorine, pH, urea, turbidity, and other things make sure that the pool water is clean.
  • Surface water detection gives us dependable information for keeping an eye on the environment and checking the quality of river, lake, and reservoir water.
  • To meet environmental criteria, sewage discharge monitoring promptly finds the inflow and outflow of commercial wastewater and sewage treatment plants.

Installation

  • Take out the instrument, colorimetric tube, adapter and other accessories from the package.
  • Install the colorimetric tube adapter and light shield as instructed until they click into place.
  • Connect the Li-ion battery or USB power supply, then turn on the instrument.
  • Select the corresponding measurement method and preheat for 5–30 minutes before use.
  • Perform zero-setting with blank sample before formal calibration and measurement.

Maintenance

  • After each usage, clean the colorimetric tube or bottle with distilled water and make sure it doesn’t have any scratches, stains, or fingerprints on it.
  • Keep the instrument in a cool, dry spot that doesn’t get a lot of sunshine or heat.
  • Before storing the battery for a long time, make sure it is fully charged. To keep the battery healthy, charge it every three months.
  • To make sure the measurements are correct, calibrate the instrument with standard solutions on a regular basis.
  • Don’t take apart the instrument on your own. To get repairs and maintenance, call official service.

Technical Support

It can detect nearly 60 indicators including ammonia nitrogen, total phosphorus, total nitrogen, residual chlorine, total chlorine, chromaticity, turbidity, ozone, hexavalent chromium, iron, manganese, copper, lead, arsenic, mercury, etc., and supports expansion and upgrading.

It is advisable to warm for 5 to 30 minutes after changing the measurement wavelength. It should also enable 1 to 5 point calibration and have clear instructions so that beginners may do it simply.

The device has a touch screen, is IP65 protected, runs on a lithium battery, is tiny and light, and can be used for outdoor testing without needing an external power source.
