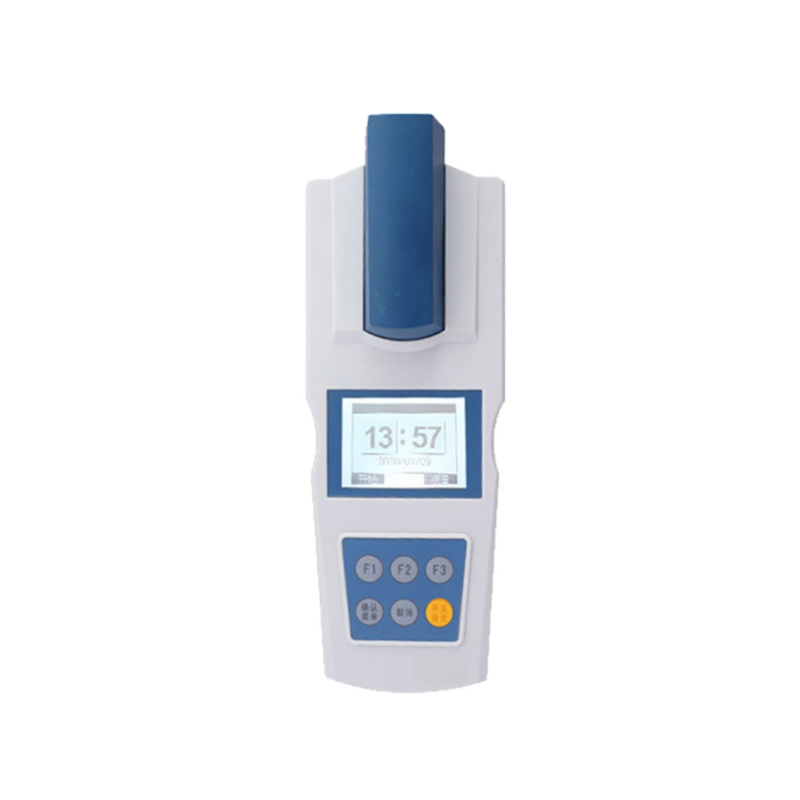

Portable Multi Parameter Analyzer DGB-401

DGB-401 is a very accurate portable multi parameter analyzer because it has advanced LED spectrophotometry and a 4-wavelength light source. It quickly finds total nitrogen, total phosphorus, ammonia nitrogen, and COD. The instrument is easy to use because it has IP65 protection, can store data, and print. It is used to test industrial wastewater, surface water, groundwater, municipal sewage, and other types of water on-site and in the lab for environmental monitoring, pollutant discharge by companies, and emergency monitoring.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Multi parameter analyzer characteristics

  • Built in 420nm, 470nm, 620nm, and 700nm LED light sources with long lifespan and high precision
  • Using spectrophotometry, with built-in detection items for high and low chemical oxygen demand (COD), ammonia nitrogen, total phosphorus, and total nitrogen. The detection methods can be directly called without wavelength selection
  • Supports single point and multi-point calibration, and allows users to edit calibration curves
  • Supports two measurement methods: absorbance and concentration
  • Supports two reading methods, Smart Read for intelligent endpoint discrimination and Cont Read for continuous measurement
  • Each testing item can store 200 sets of measurement results, in compliance with GLP standards, and supports data retrieval, deletion, and printing
  • Support USB communication and connect to PC for data collection
  • Supports battery and USB power supply, supports power management function, can set automatic light off and automatic shutdown
  • IP65 protection level, good waterproof and dustproof performance
  • Supports firmware upgrade, factory reset, and allows for feature and application expansion

Core Technical Parameters

ItemSpecification
Light Source420nm, 470nm, 620nm, 650nm LED
Low COD0.000~150.0 mg/L; Error ±8%
High COD150.0~1500 mg/L; Error ±8%
Ammonia Nitrogen0.000~10.00 mg/L (extend to 300mg/L); Error ±5%
Total Phosphorus0.000~1.000 mg/L (extend to 25mg/L); Error ±10%
Total Nitrogen0.000~30.00 mg/L (extend to 300mg/L); Error ±5%
Repeatability≤3%
Data Storage200 sets per parameter
Reading ModeAuto-Read, Continuous-Read
ProtectionIP65
PowerLi-ion battery / USB DC 5V
Dimensions100×240×80 mm
WeightApprox. 0.6 kg

Featured Applications

  • Meets discharge regulations for effluent from coking, papermaking, petrochemicals, printing, and pharmaceuticals.
  • For evaluating influent and effluent in sewage facilities, it makes sure that the treatment works well all the time.
  • Testing rivers, lakes, and reservoirs on-site; helps with pollutant tracing and environmental assessment.
  • For tap water and water from the pipe network, it makes sure that the water is safe to drink and meets all standards.
  • Quick examination of water contamination accidents helps with making decisions in an emergency.

Installation

  • Put the light shield and colorimetric tube adapter in the right place and lock them in place.
  • Turn on the power and let it warm up for at least 5 minutes before taking a measurement.
  • Choose the test item and set it to zero using clean water.
  • If you need very high accuracy, calibrate with standard solutions.

Maintenance

  • After using colorimetric tubes, clean them right away with deionized water and maintain them free of scratches.
  • To make sure everything works right, calibrate the tool on a regular basis.
  • Keep it in a cool, dry area away from direct sunshine and heat.
  • For long-term storage, charge the battery every three months.
  • Don’t take the instrument apart; call official service for help.

Technical Support

Check the battery level first, charge it with the standard charger for 15 minutes, and then try again; Press and hold the power button for 3 seconds to restart. Avoid using in environments below 5 ℃ or above 35 ℃. If the device still cannot be turned on, please contact the official after-sales service and do not disassemble it yourself.

You can export data by connecting it to a computer via USB, or you can print it directly using an RS232 serial printer to meet the requirements for recording and reporting. Each parameter can hold up to 200 sets of data and makes it easy to read and delete.

When the instrument is being used for the first time, when the measurement parameters are being changed, or when the batches of reagents are being changed, it is recommended that the instrument be calibrated. Recalibration should be performed whenever there is a significant deviation in the measurements, when there are large changes in the temperature of the environment, or when high-precision and compliant testing is required.
