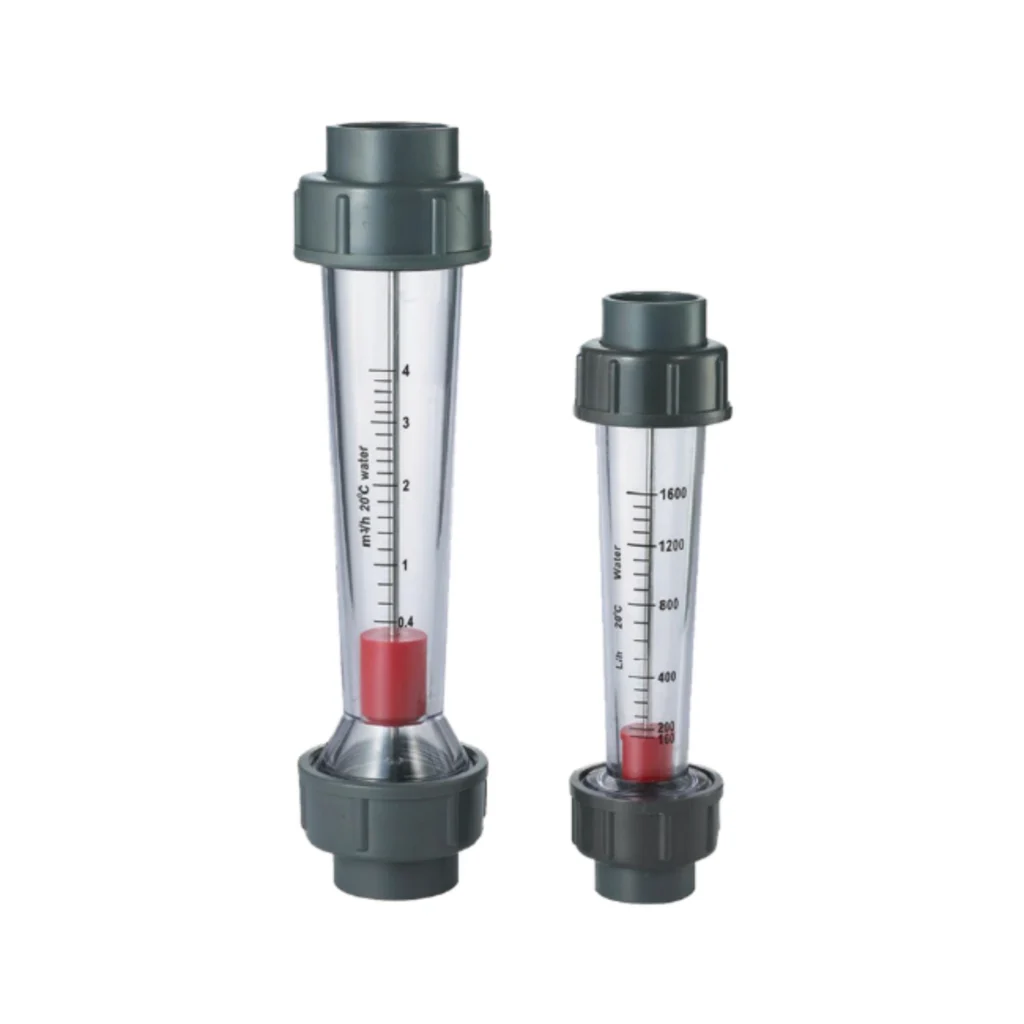

LZS series float flowmeter

The float flowmeter of Sino Inst LZS series (also called rotor flowmeter) is a plastic pipe flow measurement device, which uses a transparent conical tube and float structure, and visually shows the fluid flow rate through the float’s height rising in the conical tube. The product has calibre parameters from DN25 to DN125, a large flow range, adjustable selection, simple structure, easy reading and no power supply. It is widely used in on-site indication and simple process control of small and medium flow liquid in industries of water treatment, environmental protection, chemical engineering and food.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Portable Digestion Device characteristics

  • Transparent cone tube design, flow rate is intuitive and visible, and reading is clear and convenient;
  • Simple and reliable structure, no moving vulnerable parts, long service life;
  • No need for power supply, pure mechanical principle, safe and energy-saving, ready to use installation;
  • The pressure loss is small and basically constant, with little impact on the system pressure drop;
  • Multiple calibers and flow specifications are available, with flexible selection and strong adaptability;
  • Plastic pipe body is corrosion-resistant and suitable for various acid, alkali and salt solutions;
  • Easy installation, flange connection, low maintenance cost;
  • High cost-effectiveness, suitable for on-site flow indication and simple control.

Core Technical Parameters

ItemTechnical Parameter
Flowmeter TypeVariable area float flowmeter (rotameter)
Measuring PrincipleFloat rises in tapered tube, height corresponds to flow rate
Nominal DiameterDN25, DN32, DN50, DN65, DN100, DN125
Connection TypeFlange connection
Tube MaterialTransparent plastic (AS/ABS)
Float MaterialStainless steel / PTFE (depending on model)
Measuring MediumClean liquid, water, weak acid/alkali solutions
Accuracy Class±4% ~ ±5% FS
Pressure LossLow, approximately constant
Power SupplyNot required, purely mechanical indication
InstallationVertical installation, flow from bottom to top
Operating Temperature0~60℃ (standard)
Operating Pressure≤1.0 MPa
ApplicationOn-site flow indication, simple process control

Product Models & Flow Range

ModelDiameterFlow Range
LZS-25DN25100~1000 L/h160~1600 L/h250~2500 L/h
LZS-32DN320.4~4 m³/h0.6~6 m³/h
LZS-50DN500.4~4 m³/h0.6~6 m³/h1~10 m³/h1.6~16 m³/h
LZS-65DN655~25 m³/h
LZS-100DN10014~90 m³/h20~120 m³/h
LZS-125DN12520~120 m³/h18~150 m³/h20~180 m³/h

Featured Applications

  • Water treatment industry: on-site flow indication for purified water and reverse osmosis equipment.
  • Environmental protection industry: flow regulation indication for sewage treatment and dosing systems.
  • Chemical industry: weak acid and alkali solutions, chemical reagent flow monitoring.
  • Food and beverage: on-site indication of production water and ingredient liquid flow.
  • Pharmaceutical industry: Visual display of purified water and process water flow rate.
  • Irrigation of farmland: flow monitoring and regulation of small-scale irrigation pipelines.
  • HVAC: On site indication of cooling water and circulating water flow.
  • Laboratory equipment: experimental apparatus, small equipment flow regulation.

Installation and use precautions

  • Installation conditions: Must be mounted in a vertical position with fluid flow upward. Measurement accuracy may be affected by tilting.
  • Straight pipe portion: It is required to preserve a specified length of straight pipe section before and after to avoid the vortex compromising the stability of the float.
  • Medium requirements Suitable for liquids containing particles and contaminants that are susceptible to wear on the cone tube or to getting stuck in the float, for cleaning. We recommend that you install a filter before installation.
  • Temperature and pressure: Operate within rated temperature and pressure; excessive temperature and pressure may cause deformation and damage to the pipe body.
  • Reading method: read the scale value corresponding to the largest cross section of the float, and the line of sight is level with the scale.
  • Maintenance: frequent inspection cone tube scaling inner wall, float flexibility. If required, take apart and clean.

Technical Support

The float flowmeter is simple in structure, low in price, no need power supply, but the accuracy is relatively low (± 4%~ 5%), and the direct reading can only be on-site, suitable for simple flow indication; The electromagnetic flowmeter has high accuracy (0.5 level), can transmit output remotely, and has strong functions, but the price is expensive, need power supply, and can only measure conductive liquids. Remote transmission, high precision and electromagnetic measurement are required, and float selection needs only simple indication in situ.

Float flowmeter relies on the balance between float gravity and fluid impulse to measure flow rate. Tilting will change the gravity component of the float, resulting in increased measurement error. Generally, it is required that the vertical deviation should not exceed 5 °, otherwise it will significantly affect the accuracy.

Yes, the plastic pipe body itself has resistance to general acid and alkali corrosion, suited for weak acid alkali salt solutions, sewage, water treatment and other scenarios. However the compatibility of strong oxidising acids and organic solvents needs to be established and PTFE walled or totally PTFE versions should be chosen where appropriate.
