Why Plastic pH Electrodes Outperform Glass in Industrial Water Treatment

The survival of an industrial or wastewater pH electrode determines its value.
Working with high-solids slurries, caustic chemicals, or hazardous effluents has likely caused the following issues:

Frequent tiny liquid junction clogging
Reference sulfide/cyanide poisoning
Broken glass bulbs from pressure or turbulence
Due to severe temperatures and pressures, leaks or failure

These failures lead to unstable readings, unplanned downtime, and costly sensor replacements.

Insert Plastic-Shell Electrode.

Plastic pH electrodes made of Epoxy, PPS, or PVDF are designed like industrial gear, not delicate laboratory glassware. Advantages include:

Housing that resists impact
Wide-temperature performance
Anti-poisoning double- or triple-junction designs
Replaceable salt bridges
Anti-fouling PTFE joints

Below is a detailed comparison of the Top 5 Plastic pH Electrodes designed specifically for harsh industrial and wastewater applications.

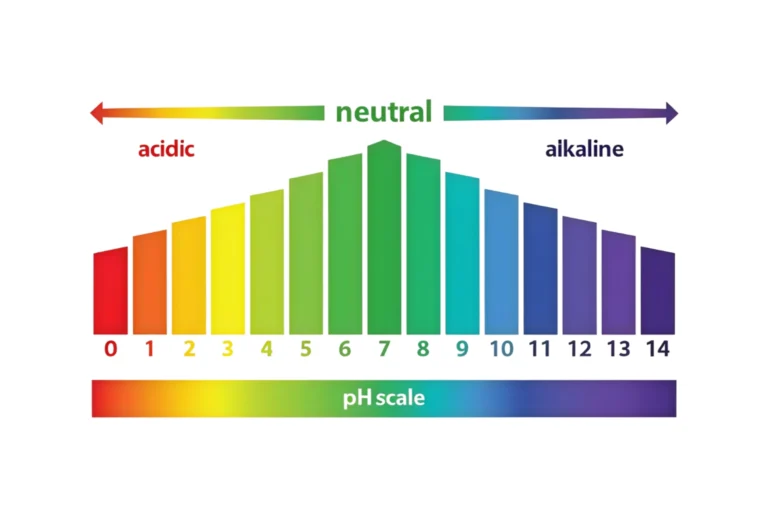

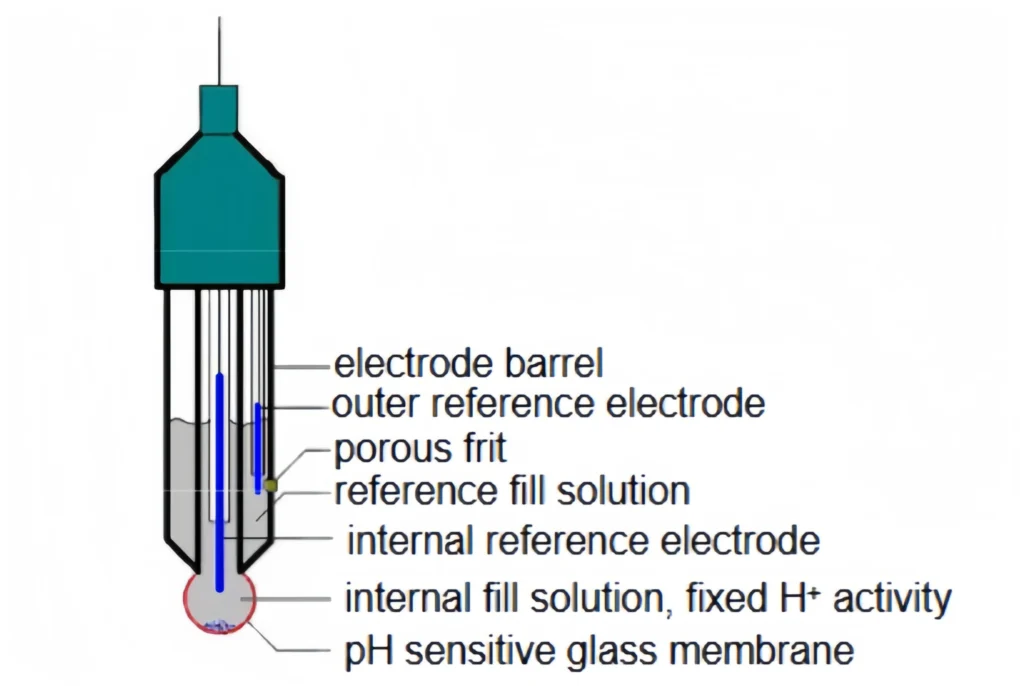

How does a pH electrode work?

In simple terms, a pH electrode is an electrochemical sensor that detects the difference in voltage (potential) between two sites. The voltage changes depending on how acidic the water is, like a battery.

There are three primary parts to it:

The Measurement Electrode (Glass Bulb): The end of the sensor is formed of a particular glass membrane that is sensitive to pH. When hydrogen ions ($H^+$) in the water touch the glass surface, they generate a minor electrical potential.

More Acidic ($H^+$ high) -> Positive Potential
More alkaline (low $H^+$) means less potential.

The Reference Electrode: We need a steady baseline to see how the glass bulb changes. The reference electrode, which is commonly Ag/AgCl wire in KCl gel, gives forth a steady voltage that doesn’t change with the water conditions.

The Circuit Builder: The Liquid Junction
This is the porous point (ceramic or PTFE) where the sample water and the internal electrolyte meet. It makes the electrical circuit work. This is the most important section for sensors used in industry. If grease or scale builds up in the junction, the circuit will break, and your measurements may stop or wander.

Technical Fact: The Nernst Equation says that for every 1 unit change in pH (at 25°C), the output of the electrode varies by around 59.16 mV.

Quick Comparison: Top 5 Plastic Electrodes at a Glance

Short on time? Use this table to find the specific sensor model that fits your industrial application.

Product Model	Core strengths	temperature tolerance	Adaptation scenario	Core technology
GRT1320PDW	High temperature and high pressure+differential anti-interference+replaceable salt bridge	0-130℃	Pharmaceutical high-temperature sterilization, chemical reaction kettle, beer fermentation	Three electrode differential structure, high temperature resistant gel dielectric
GRT1030JW	Anti toxic and anti blocking+wide temperature and low maintenance+data compliance	0-130℃	Municipal sewage, chemical sulfur-containing/cyanide containing wastewater	Circular PTFE liquid interface, preventing S ² ⁻/CN ⁻ poisoning
GRT1020PD	Short size+medium low temperature differential+economical and practical	0-60℃	Pharmaceutical pilot testing, small-scale reaction vessels, food wastewater	159mm short body, differential anti electromagnetic interference

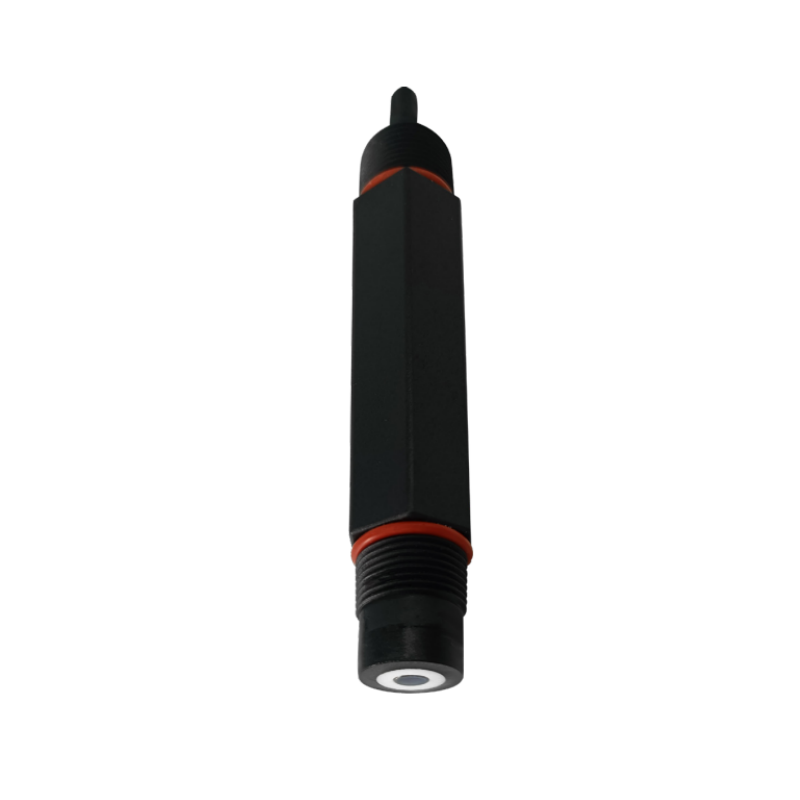

GRT1030W	High cost-effectiveness+adaptation to normal working conditions+basic anti-virus	0-60℃	Small and medium-sized electroplating plants, township sewage stations	No need to replenish charging medium, easy maintenance
KPT-561FW	Strong corrosion resistance+customization+low attenuation	0-130℃	Fluorine containing wastewater, high concentration acid-base chemical wastewater	Perfluorinated shell, corrosion-resistant sensitive film

Top 5 in-depth analysis of products

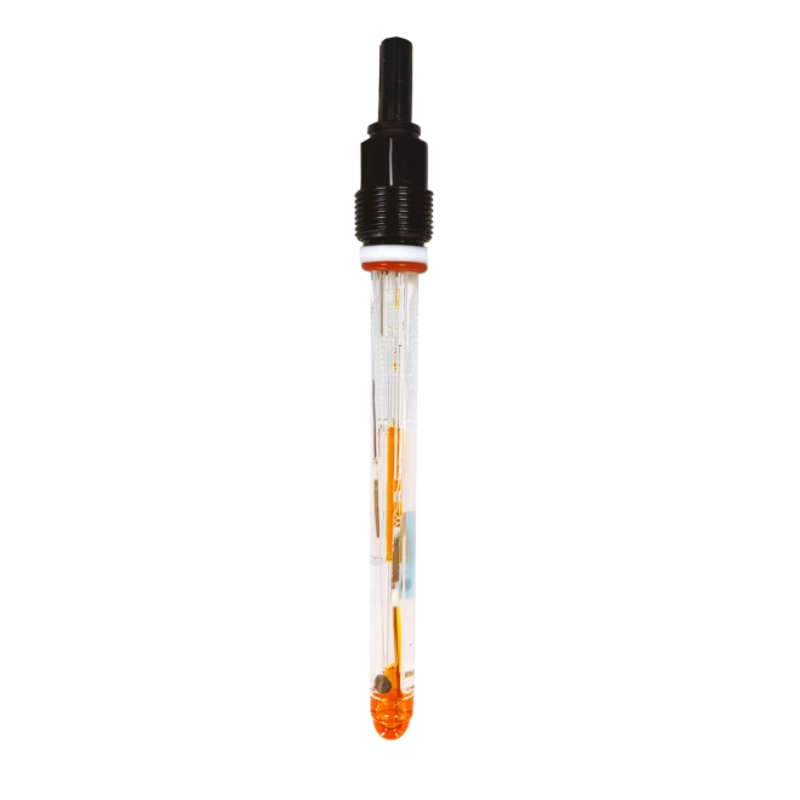

GRT1320PDW

Best for High-Temp & High-Pressure

Sino Inst GRT1320PDW is a high-temperature and high-pressure differential pH sensor that can withstand working conditions of 0-130 ℃/0.4MPa. It has differential anti-interference and can be replaced with a salt bridge to reduce costs. It is suitable for pharmaceutical sterilization, chemical reaction vessels, and other scenarios.

Key Specifications:

Application: WWTP Aeration Tanks, Deep Wells, River Monitoring.
Protection: IP68 Submersible Standard.
Junction: Double Junction for extended life.

Core strengths：

Differential technology, precise anti-interference
Swap salt bridge, extend lifespan
Wide range tolerance, suitable for extreme working conditions

Parameter	Value
pH Range	0-14 pH
ORP Range	-1500—+1500 mV
Sensitivity	pH：±0.01pH ORP：±0.5mV
Temperature Range	0-130℃
Pressure Range	At 130 ℃, it is 4 bar

💡Why choose it?

⚠️Pain points solved in working conditions: Under high temperature and high pressure scenarios such as pharmaceutical high-temperature sterilization and beer saccharification at 130 ℃, ordinary electrodes will experience data drift within one week due to component aging, and cannot resist interference from organic media
✅ Core advantage 1: Able to withstand high temperatures of 0-130 ℃ and high pressures of 0.4MPa, suitable for heavy-duty conditions such as high-temperature sterilization and chemical reaction vessels
✅ Core Advantage 2: Three electrode differential architecture, capable of offsetting organic impurity interference, data drift ≤± 0.01pH
✅ Core Advantage 3: Supports separate replacement of salt bridges, saving 60% of post maintenance costs compared to replacing sensors as a whole

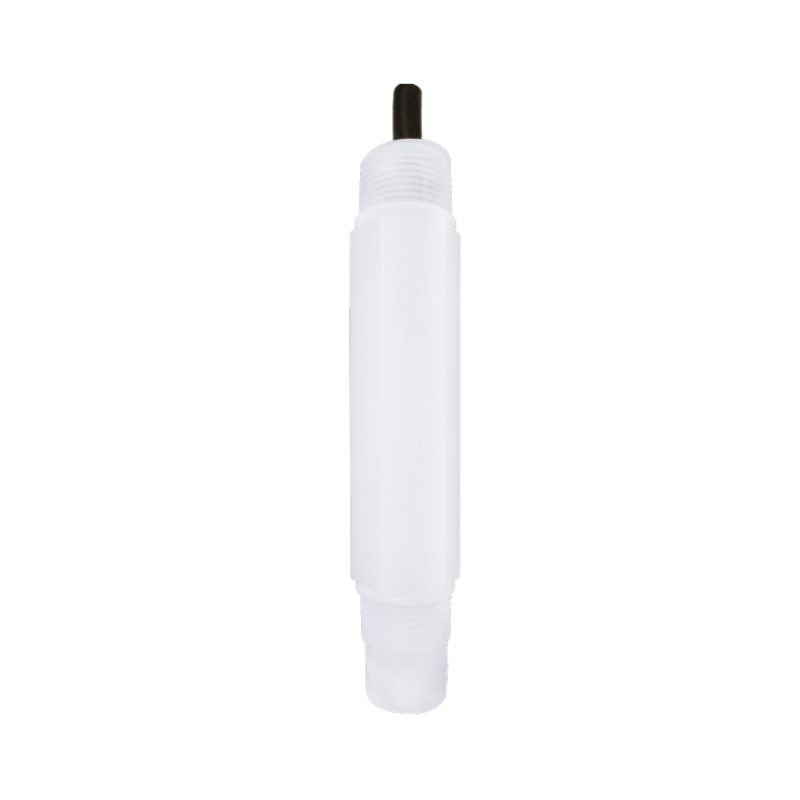

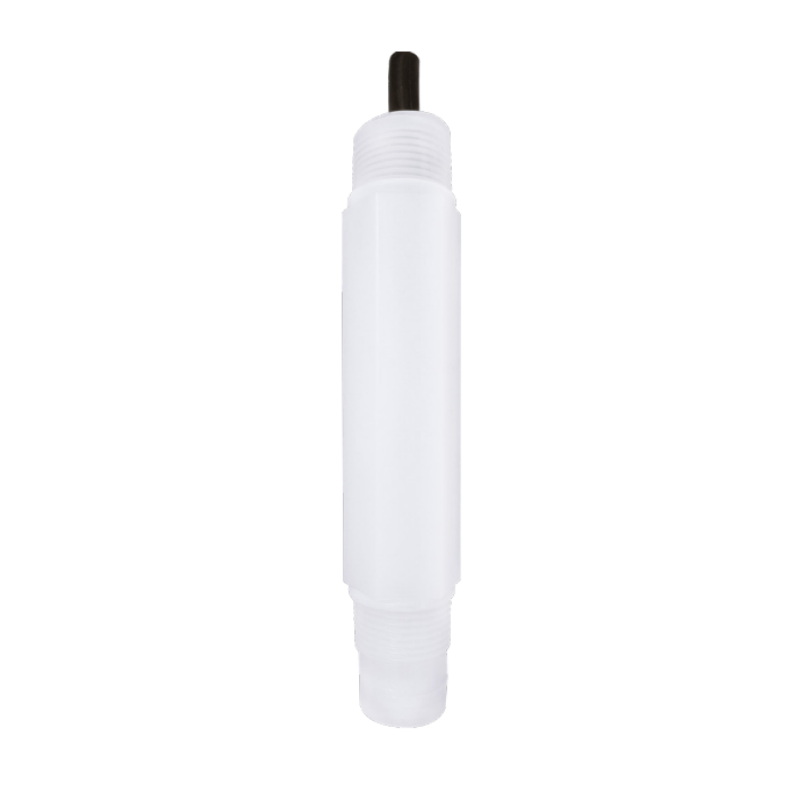

GRT1030JW

Highly toxic wastewater specific electrode

Sino-Inst GRT1030JW is a pH electrode specifically designed for highly toxic wastewater, featuring a ring-shaped PTFE liquid junction to prevent clogging, gel dielectric for poison resistance, a wide temperature range of 0-130°C with low maintenance, and suitable for monitoring municipal wastewater and sulfur/cyanide-containing effluents.

Key Specifications:

Application:Suitable for online detection of sewage
No need to replenish electrolytes
Adopting PTFE liquid interface, it is not easy to block

Core strengths：

High-Toxicity Wastewater Adaptation
Anti-Clogging and Anti-Toxicity
Wide Temperature Range with Low Maintenance

Parameter	Value
pH Range	0-14 pH
Pressure resistance	0-0.3MPa
Zero potential	7±0.5
Temperature Range	0-130℃
Theoretical percentage slope	≥ 95%
Thread Size	3/4 inch NPT

💡Why choose it?

⚠️Pain points solved in working conditions:The municipal sewage inlet is high in turbidity and impurities, and the chemical sulfur-containing and cyanide containing wastewater is highly toxic. Ordinary electrodes can clog or be poisoned and scrapped within 2 weeks, and frequent replacement increases operation and maintenance costs
✅ Core advantage 1: Large area annular PTFE liquid interface, with a 5-fold increase in anti clogging ability, avoiding monitoring failure caused by impurity adhesion
✅ Core Advantage 2: Solid gel dielectrics can resist the attack of toxic ions such as S ² ⁻ and CN ⁻, prevent electrode poisoning and scrap, and extend the service life
✅ Core Advantage 3: The wide temperature range of 0-130 ℃ can cover the high temperature stage of sewage disinfection, and there is no need to supplement dielectric materials. The average monthly maintenance time is less than 10 minutes, reducing operation and maintenance costs

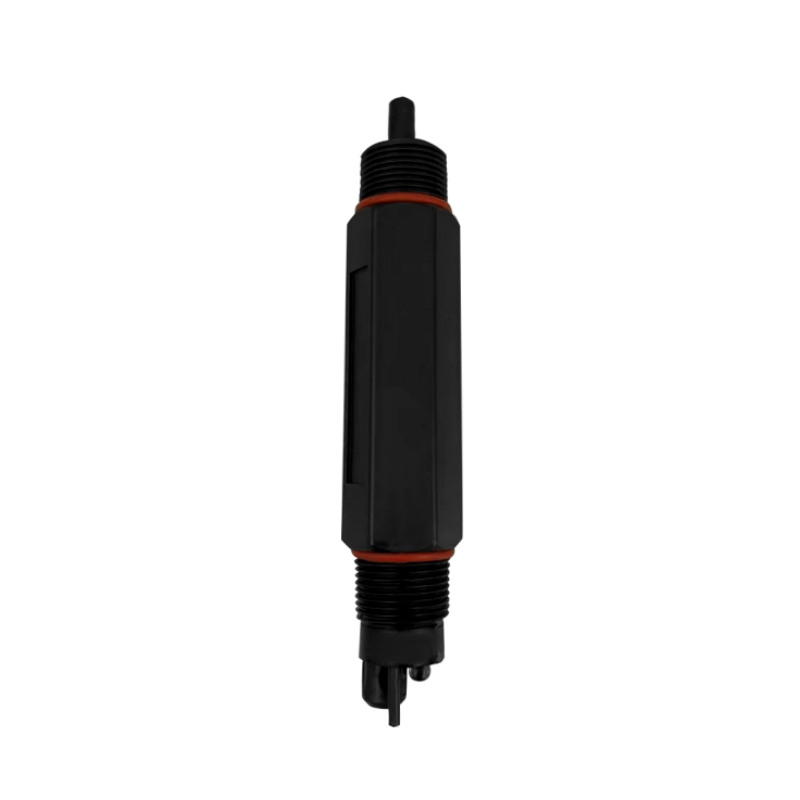

GRT1020PD

Compact Anti-Interference pH Electrode

Sino Inst GRT1020PD is a compact differential pH electrode with a 159mm short body that is suitable for small installation spaces. It is resistant to electromagnetic interference and alkali blockage, and is designed specifically for pharmaceutical pilot testing and fine chemical intermediate monitoring.

Key Specifications:

Differential technology, precise anti-interference
Swap salt bridge, extend lifespan

Core strengths：

Exclusive for small spaces
Triple anti-interference
Alkali resistant and anti blocking

Parameter	Value
pH Range	0-14 pH
ORP Range	-1500—+1500 mV
Sensitivity	pH：±0.01pH ORP：±0.5mV
Temperature Range	0-60℃
Pressure Range	4 bar

💡Why choose it?

⚠️Pain points solved in working conditions: Due to restricted installation space (≤ 200mm) and the conventional electrode body being too lengthy for pharmaceutical pilot lines and enclosed reaction vessels, Regular electrode data changes due to electromagnetic noise from the workshop’s frequency converter and mixing equipment. Intermediate wastewater contains alkaline solutions and other substances that can degrade membranes and obstruct electrodes.
✅ Core advantage 1: In industrial situations, differential three-electrode design with triple electromagnetic shielding can tolerate 30V/m RF interference. A 24-hour potential drift of ketone/alkali intermediate wastewater is less than ± 8mV, indicating reliable readings.
✅ Core Advantage 2: The replaceable salt bridge extends the lifespan of the sensor (limited to 3/4 “plastic shell electrodes only).
✅ Core Advantage 3: The shell resists alkali corrosion and has a wide PTFE liquid interface and solid electrolyte that is hard to block and does not need dielectric. It can detect fine compounds and pharmaceutical intermediates.

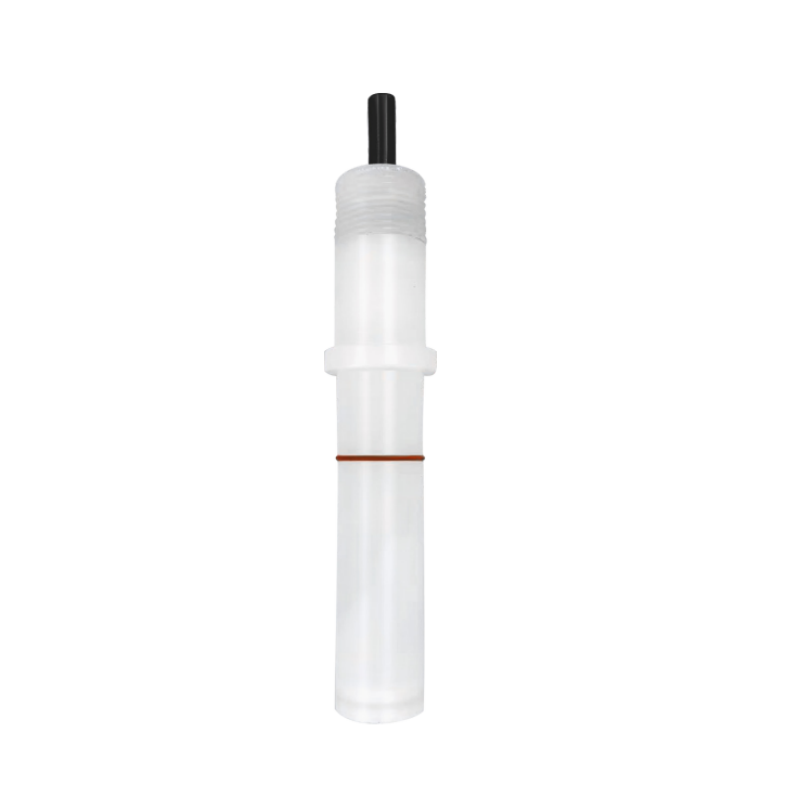

KPT-561FW

Corrosion-Resistant pH Electrode for Sewage Monitoring

Sino-Inst KPT-561FW is a special pH electrode for online monitoring of sewage. PVDF material is resistant to strong corrosion, annular PTFE liquid interface is resistant to blocking, solid gel is resistant to S ² ⁻/CN ² poisoning, and is suitable for 0-130 ℃ wide temperature conditions.

Key Specifications:

Circular PTFE liquid interface
No need to replenish electrolytes
Adopting PTFE liquid interface, it is not easy to block
Installation interface
3/4-inch NPT Thread

Core strengths：

Strong corrosion resistance
Anti blocking and anti poisoning measures
Wide temperature adaptation

Parameter	Value
Measurement Range	0-14 pH
Theoretical percentage slope	≥95%
Zero potential	7±0.5
Temperature Range	0-130℃
Pressure Range	0-0.3 M Pa
Body Material	PVDF
Thread Size	3/4 inch NPT
Junction / Electrolyte	PTFE ring junction + solid gel electrolyte

💡Why choose it?

⚠️Pain points solved in working conditions:In online sewage monitoring, ordinary electrodes are easily corroded by strong corrosive media, blocked by impurities at the liquid interface, and prone to failure under high temperature conditions
✅ Core advantage 1: PVDF material shell, strong corrosion resistance, suitable for long-term monitoring of complex media such as sewage
✅ Core Advantage 2:Anti blocking ring polytetrafluoroethylene liquid junction+solid gel electrolyte, not easy to block, can be detected online for a long time, and the maintenance amount is small
✅ Core Advantage 3: The gel electrolyte is resistant to S ² ⁻ and CN ⁻ ion poisoning. The special glass sensitive membrane has fast response and good stability, and is suitable for various pH measurements

Plastic vs. Glass Electrodes-Which Lasts Longer in Wastewater?

In harsh industrial and wastewater environments, “ruggedness” directly determines electrode service life and maintenance costs. Below is a side-by-side comparison of plastic and glass electrodes in key durability metrics—proving why plastic is the smarter choice for tough, dirty conditions:

Ruggedness Metric	Plastic Electrodes (Our Top 5)	Glass Electrodes
Impact Resistance	Withstand debris impact & pump turbulence	Break easily under mechanical stress
Chemical Resistance	PPS/PVDF resist acids, alkalis, solvents	Vulnerable to HF, strong alkalis
Fouling Resistance	PTFE/ceramic junction reduces clogging	Narrow glass junction clogs quickly
Service Life in Wastewater	4-12 months	1-3 months
Maintenance	Gel electrolyte, minimal servicing	Frequent calibration + careful handling

Key Takeaway: For rugged industrial/wastewater use, plastic electrodes outperform glass in every durability category. They eliminate costly downtime from breakage, corrosion, and clogging.

How to choose the appropriate plastic sensor

Quickly match suitable sensors based on 5 core factors to avoid over specification or mismatch:

Medium Characteristics
- Strong acids/alkalis → PVDF models
- High solids (≥3000 mg/L) → Anti-clog PTFE junction
- Light-duty chemicals → Epoxy/PC body
Environmental Conditions
- Temperature >80°C → High-temperature series
- High turbulence or pump agitation → Reinforced PPS/PVDF
Required Accuracy
- Process control → ±0.02 pH
- General monitoring → ±0.05 pH
Installation Compatibility
- Pipes → 3/4″ NPT
- Tanks → Submersible IP68
- Controllers → BNC or custom S8 connector
Cost vs. Lifespan
- Consider “cost per month,” not purchase price.
  - PVDF → 10–12 months life
  - Polycarbonate → 4–6 months life

Maintenance Tips: Keep Your Plastic Sensor Alive

Even the most durable plastic sensor needs care. Follow these 3 golden rules:

Never Store Dry: Always keep the protective cap filled with 3M KCl solution. A dry bulb means a dead sensor.
Clean Gently: For plastic bodies, you can use a soft brush and mild detergent to remove sludge. For scale buildup on the GRT1030W, a quick dip in 5% HCl is effective.
Watch the Slope: Calibrate weekly. If the slope drops below 85% even after cleaning, the reference system is likely depleted, and it’s time for a replacement.

Fixed-Gas-Detector-with-Remote-Sensor — **Fixed Gas Detector with Remote Sensor**

Multi Gas Detector for 4 Gases — **Multi Gas Detector for 2~8 Gases**

Portable-Gas-Detector-for-Single-Gas — **Portable Multi Gas Detector for 2~6 Gases**

FAQ

Important Factors That Affect: 1) Chemical corrosion (high-concentration acids and alkalis cut life by 30–50%); 2) Temperature (each 10°C rise above 60°C cuts life by 15%); 3) Mechanical wear (debris in wastewater can scratch the membrane); 4) Maintenance frequency (not calibrating leads to wrong operation).
Tips for extending: If you are in a corrosive environment, use PVDF/PPS materials. To keep debris from hitting the electrode, use a filter screen. Clean the electrode with deionized water once a week, and calibrate it every two weeks or right after you change the measured medium. When not in use, store it in a 3M KCl solution so it doesn’t dry out.

Some of the most common reasons are: 1) Clogging of the liquid junction (sludge or suspended particulates obstruct ion exchange); 2) Electrolyte failure (gel electrolyte drying out or getting dirty); 3) Temperature variation (no automatic temperature compensation); 4) Membrane contamination (oil or organic materials sticking to the membrane surface).
Answers: 1) To unclog, use a gentle brush to clean the liquid junction with deionized water or soak it in 0.1mol/L HCl for 10 minutes. 2) If the electrolyte fails, replace the electrode (gel-type electrodes can’t be replenished); 3) Choose electrodes with built-in temperature sensors so that they can automatically adjust; 4) Clean the membrane frequently with alcohol (for oil contamination) or dilute acid (for scale).

If you store the sensor correctly, it can last 20–30% longer:

• For short-term storage (1–2 weeks), soak the tip in a 3M KCl solution (not tap water or buffer solution), and seal the connector to keep moisture out.

• For long-term storage (more than a month), dry the sensor tip with clean filter paper, put on the protective cap with a little KCl gel (included with the sensor), and keep it in a cool, dry area (away from direct sunlight and high temperatures).

• Before using the sensor again after it has been stored, re-activate it by soaking it in the activation solution for two hours and then calibrating it.

When to Turn On: New sensors (the membrane is dry), electrodes that haven’t been used in more than a week, or electrodes that respond slowly or give big measurement errors.
Step-by-Step Activation: 1) For 2 to 4 hours, soak the tip of the electrode (2–3 cm) in a special activation solution (or a 0.1 mol/L HCl solution). Don’t soak the whole sensor, though, because that could harm the connector. 2) Use deionized water to rinse well; 3) Soak in a 3M KCl solution for 30 minutes to stable the reference system. 4) Before using, calibrate with a standard buffer solution (pH 4.01/6.86/9.18).
Please don’t use tap water to soak because it will make the membrane dirty.

This depends on how bad the smog is.
Oil contamination: Wash the membrane with dry ethanol (or alcohol) for 1–2 minutes, then dip it in a 3M KCl solution for an hour. It can usually be used again after this.
Heavy metal pollution (like chromium) ⁶⁺: To chelate heavy metals, soak the tip in a 0.1mol/L EDTA solution for 2–3 hours and then measure. If, after calibration, the error is more than ±0.05 pH, replace the electrode.
Pollution that can’t be cleaned: If the membrane goes black (sulfide poisoning) or loses its see-through quality, the electrode is permanently damaged and needs to be replaced.

The main difference is how well they resist corrosion:

• Single-junction (e.g., PE-8000/7000/5000): Good for wastewater that isn’t corrosive or only mildly corrosive (like common industrial or municipal sludge), and it’s cheap.

• Double-junction (like PE-9000): Keeps corrosive materials (such acids and heavy metals) separate from the internal reference. This is necessary for electroplating and petrochemical wastes.

• If the medium has sulfide, cyanide, or heavy metal ions in it, use double-junction.
