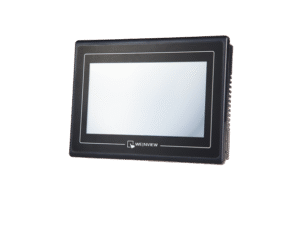

10FD-XP Flow Computer

10FD-XP Flow Computer

The 10FD-XP is a full-featured flow computer integrating the functions of a manual operator, display, and totalizer. It can input 1-4 flow signals, and user-customizable software is available. Its large screen display and ultra-thin design (43mm thickness) facilitate installation on various devices.

The 10FD-XP flow computer directly accepts digital signals, thus offering superior accuracy, interference immunity, and signal transmission distance compared to conventional analog secondary instruments.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • 7-inch monochrome STN LCD with backlight;
  • Compatible with various MFC/MFM models or PLCs (Modbus protocol);
  • Multi-channel simultaneous display and single-channel multi-parameter display;
  • Alarm list function with sequential row display of alarm information;
  • Customizable software with programmable function keys;
  • Time-segmented accumulation function and password protection;

Specifications

DisplayTypeBlue LED
LifespanOver 20,000 hours, ambient temperature 45 degrees Celsius, 24-hour operation
Display Area154*87
BrightnessAdjustable
Text SettingSimplified Chinese/English
Character SizeDot matrix font; Vector font
KeysTouchscreen
MemoryScreen64KB FlashROM
Data1KB SRAM
InterfaceDownload PortRS232
Communication PortRS485 MODBUS protocol; Connection method: DB 9-pin
Electrical CharacteristicsPower SupplyDC22V～DC26V
External Power SupplyDC24V
Power Consumption<140mA
Power Loss ToleranceBelow 10ms (actual power failure less than 1 second)
Voltage Surge ResistanceAC 1000 V, 20mA less than 1 minute
Insulation ResistanceAbove 10M, DC500 F
EnvironmentOperating Temperature0～50 degrees Celsius
Storage Temperature-20～60℃
Operating Humidity10%RH to 90%RH (non-condensing)
Interference ResistanceInterference pressure: 1500 V; P-P pulse period: 1µs
1 minute
AirNo corrosive gases
Cooling MethodNatural air cooling
StructureExternal Dimensions202*147*42.5mm
Panel Cutout Size192*138mm

Order Guide

Serial Number10FD-XP
Product Type【01】Single channel
【02】Two channel
【03】Three channel
【04】Four channel
Power Supply【D】24VDC                 【A】220VAC
Selection Example10FD-XP    04    D
