10FA-XS Flow Display Controller

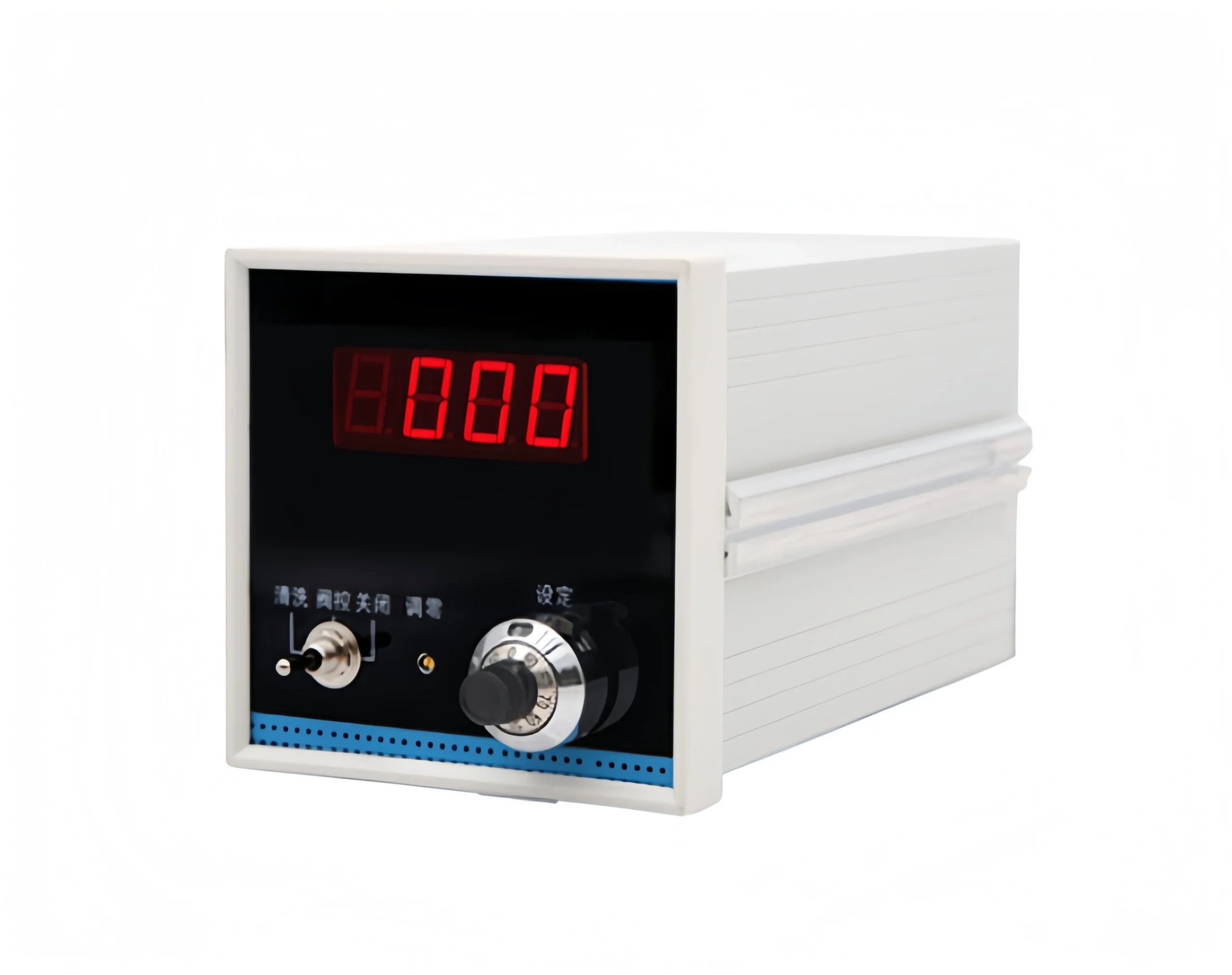

The 10FA-XS Flow Display Controller provides power to analog mass flow meters, handles flow setting (manual operation), and displays flow data. It is directly compatible with our SI-10FA series mass flow controllers (MFC) and can also be used with other models of mass flow controllers. Up to four MFCs can be connected, each with its own display. It is easy to use, available in embedded/desktop installation options, and boasts a sleek and aesthetically pleasing design.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • Provides operating power for mass flow controllers or flow meters;
  • Manual operation for flow rate setting;
  • Gas flow rate display;
  • Compatible with other models of mass flow controllers;
  • Wide voltage range, strong anti-interference capability, CE certified;

Specifications

Output Voltage (for MFC)+15V±3%, -15V±3%
Power Supply165VAC～265VAC
Input/Output SignalsDC 0～5V, 4～20mA
Display UnitSCCM (Standard ml/min); SLM (Standard liter/min)
External ControlsCleaning/Shutdown

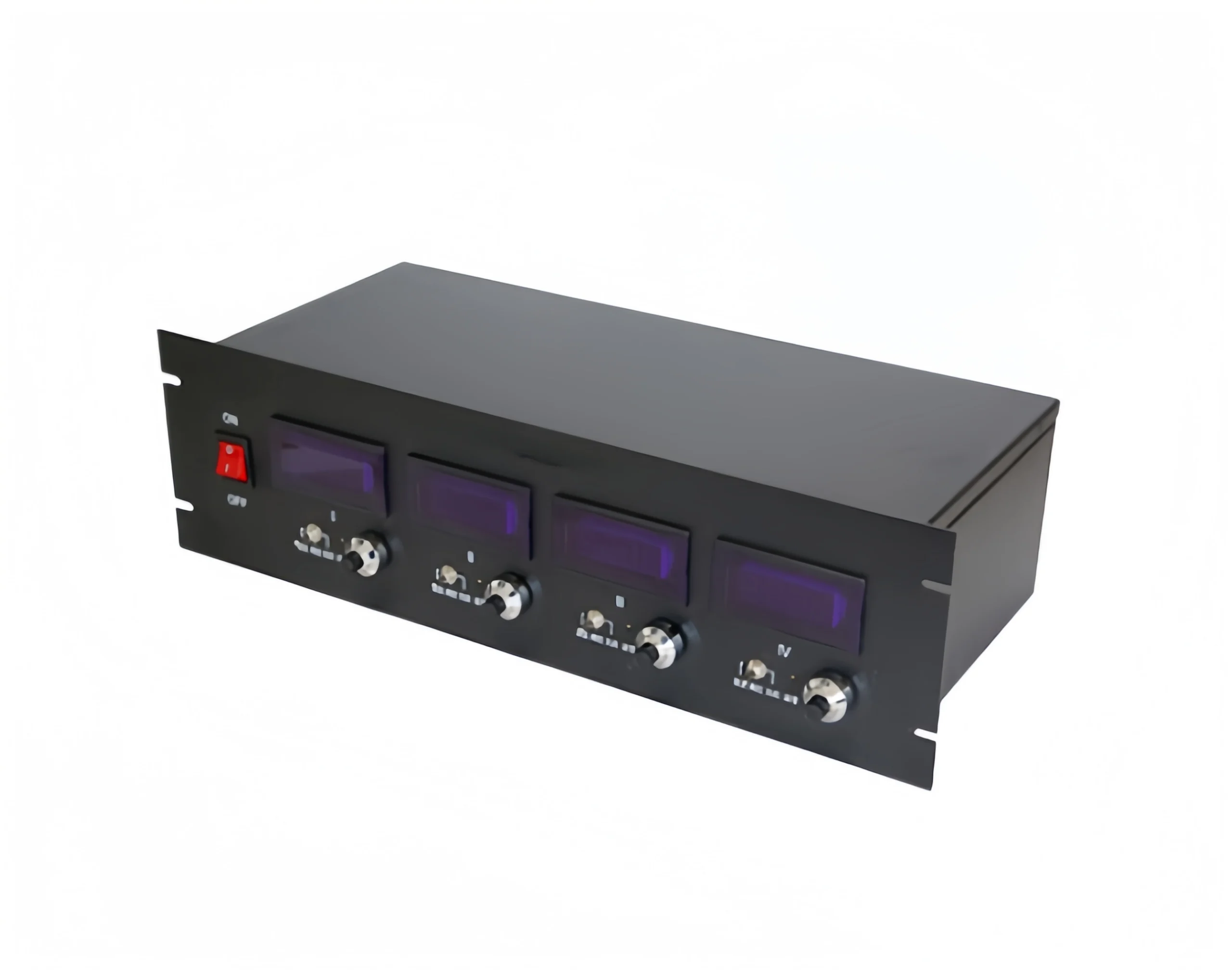

Display FeaturesSingle-channel display, dual-channel display, triple-channel display, quadruple-channel display
DimensionsSingle-channel: 96×96×173 mm, multi-channel: 483×140×210 mm
Hole SizeSingle-channel: 92×92 mm, multi-channel: 442×124 mm
Reference Source+5.00V 5mA
Maximum Power ConsumptionMaximum power consumption: Single-channel 15W, multi-channel 45W
WeightSingle-channel: 1kg, multi-channel: maximum 7.5kg

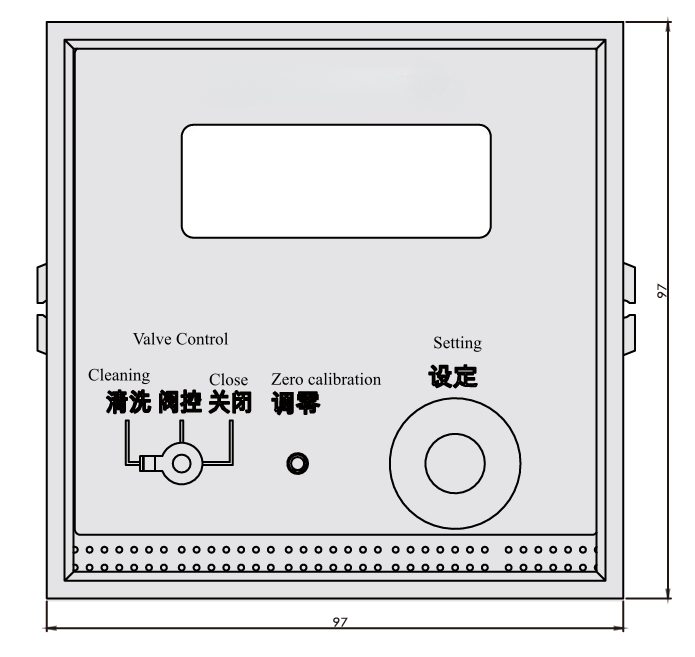

  • 10FA-XS Flow Display Controller Single-Channel Outline Dimensions
    10FA-XS Flow Display Controller Single-Channel Outline Dimensions

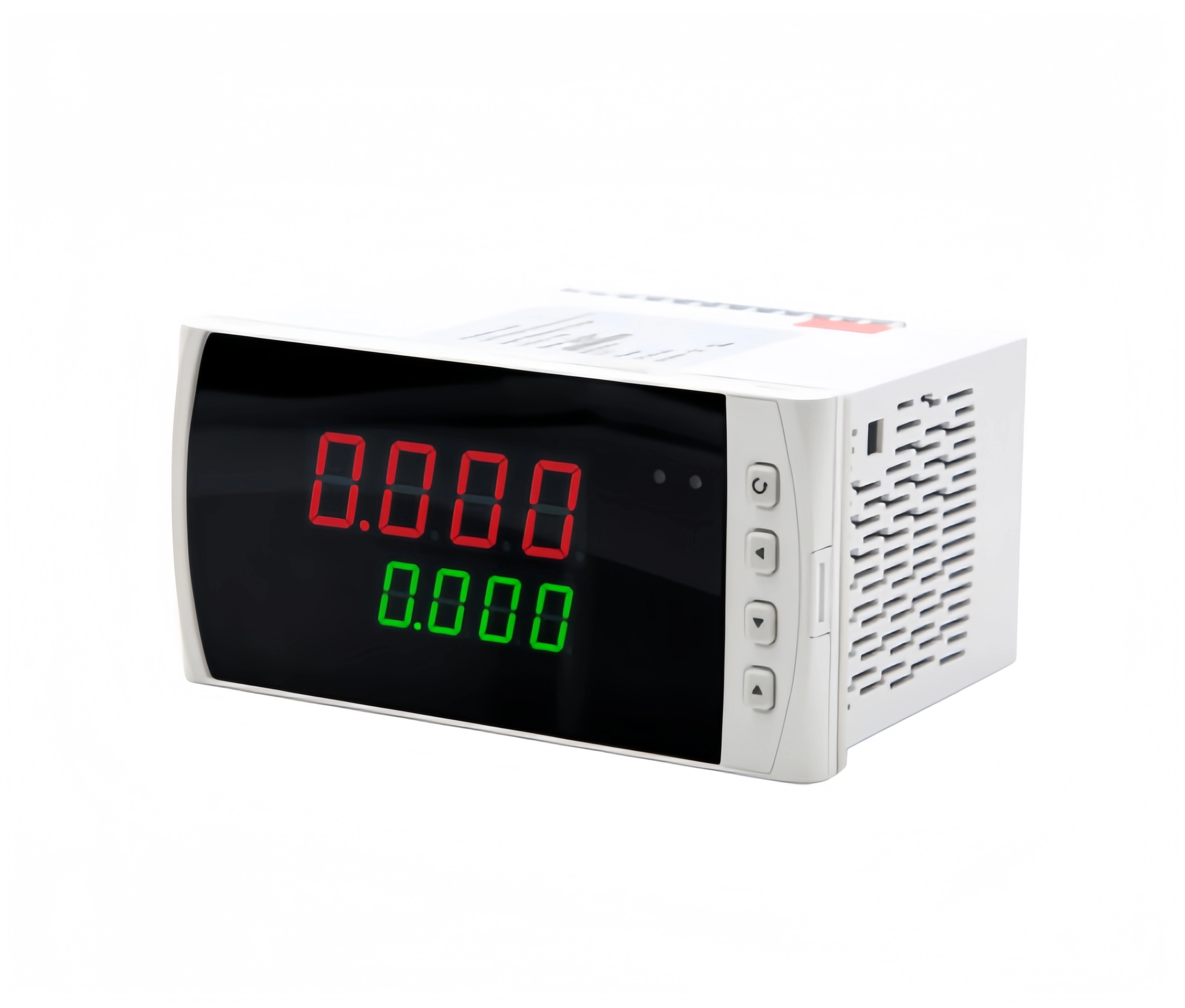

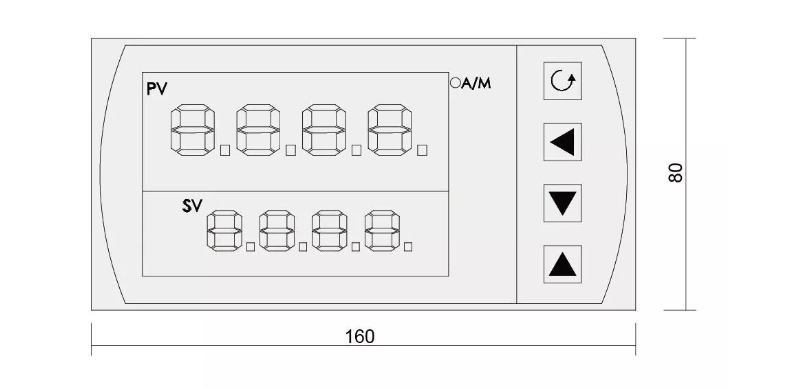

  • 10FD-XS Flow Totalizer Dimensions
    10FD-XS Flow Totalizer Dimensions

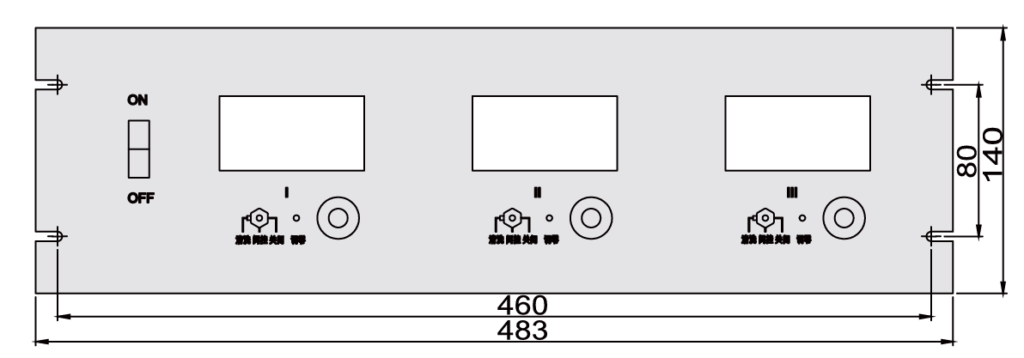

  • 10FA-XS Flow Display Controller Multi-Channel Outline Dimensions
    10FA-XS Flow Display Controller Multi-Channel Outline Dimensions

    • Order Guide

    Serial Number10FA-XS
    Product Type【01】Single Channel
    【02】Dual Channel
    【03】Triple Channel
    【04】Quad Channel
    Valve Control Function【01】Yes
    【02】No
    Input/Output Signals【V】0~5VDC               【A】4~20mA
    Chassis Type【T】Desktop
    【P】Panel
    Selection Examples10FA-XS    04    01    V    T

    How Does a thermal mass flow controller working principle?

    Posted on
    The thermal mass flow controller working principle is one of the most important concepts in modern industrial gas measurement. Whether you work in laboratories, semiconductor manufacturing, environmental monitoring, or industrial…

    8 Best Mass Flow Controller Manufacturers

    Posted on
    Choosing the most reliable Mass Flow Controller manufacturers is essential for industries that depend on precision gas flow control—semiconductor fabrication, medical devices, combustion analysis, environmental monitoring, industrial automation, and more….

    Sino-Inst’s 10FA-XS Flow Display Controller can display flow rate. Typically, the flow meter display is shipped with an MFC/MFM (Metal Flow Meter/Mass Flow Controller). The unit of the display will be adjusted to match the value and unit of the MFC/MFM channel.

    We can also configure a flow display controller with flow adjustment and control functions. One display can simultaneously connect to 3-4 mass flow meters/mass flow controllers.
