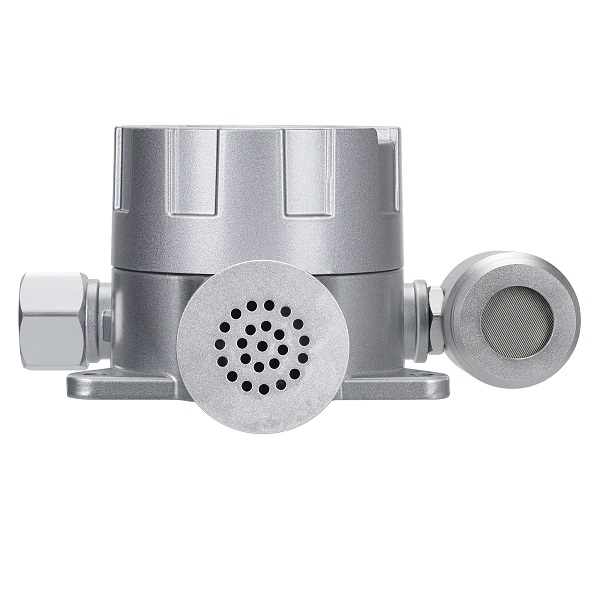

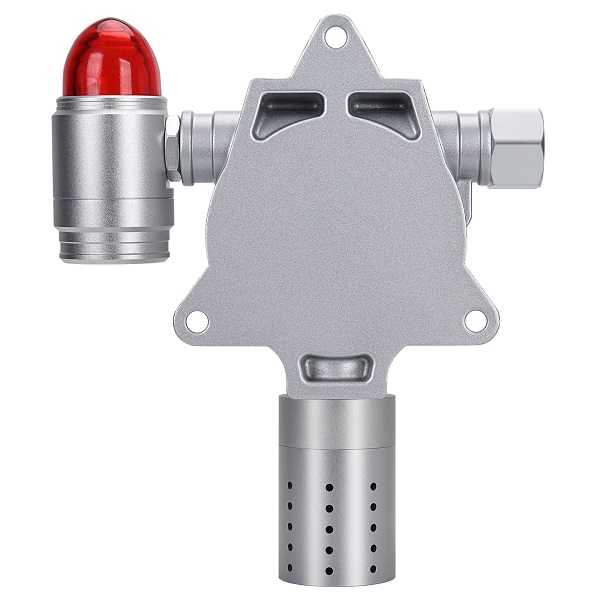

Online Dust Detector

Online Dust detector is suitable for real-time and accurate detection of dust concentration in factory workshops. Overall flameproof (d) structure, fixed installation method. Widely used for workshop dust concentration detection, including pm2.5/pm10.

Sino-Inst Online Dust detector is equipped with standard bus RS485 and 4~20mA standard signal simultaneous output, 1 group of relay switch output, optional frequency output 200-1000Hz, Hart protocol signal, 1~5V output, wireless transmission (10-50 kilometers or unlimited distance). Realize wired or wireless remote real-time monitoring.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • Automatic temperature compensation, zero drift, and full-scale drift compensation.
  • Automatic protection against high-concentration gas shock and sensor fault self-detection function.
  • Circuit protection design greatly reduces the failure rate during installation and use.
  • Infrared remote control mode, the detector can be adjusted without opening the cover, which is safe and convenient.
  • It can directly drive solenoid valves, fans, alarms and other equipment. It can also drive high-power equipment by driving intermediate relays.
  • Receiving equipment: user computer, control alarm, compatible with various secondary meters, data acquisition modules, PLC, DCS systems, etc.
  • On-site sound and light alarm, external alarm, remote controller alarm data acquisition alarm, etc.;
  • Die-cast aluminum shell + sandblasting oxidation/fluorine nitrogen paint, explosion-proof and corrosion-resistant;

Specifications

Detection gasDust, PM2.5/PM10
Detection range:0-1000ug/m3, 6000ug/m3, 0-10mg/m3, 0-20mg/m3, 0-100mg/m3, 0-1000mg/m3 (other ranges can be customized)
Working voltage:DC5V±1%/DC24±1%
Detection accuracy:≤±3%
Repeatability:≤±2%
Working temperature:-30~70℃
Storage temperature:-40~70℃
Working current:≤50mA
Installation method:Fixed, wall-mounted, diffused, etc.
Electrical interface:3/4″NPT internal thread, 1/2″NPT internal thread, supports 2 types of electrical connection methods
Output signal:① 4-20mA signal: standard 16-bit precision 4-20mA output chip, transmission distance 1Km
② RS485 signal: using standard MODBUS RTU protocol, transmission distance 2Km
③ Voltage signal: 0-5V, 0-10V output, can be set by yourself
④ Pulse signal: also known as frequency signal, frequency range is adjustable (optional)
⑤ Switching signal: standard 2 sets of relays, optional third set of relays, relay passive contacts, capacity 220VAC 3A/24VDC 3A.
Detection method:Laser scattering
Response time:≤10 seconds (T90)
Working humidity:0-100%RH, no condensation
Long-term drift≤±3% (F.S/year)
Warm-up time10s
Working air pressure80KPa~120KPa
Shell materialDie-cast aluminum + sandblasting oxidation/fluorocarbon paint, explosion-proof and corrosion-proof
Explosion-proof mark:ExdII CT6 (flameproof type)
Dimensions and weight:183×143×107mm(L×W×H)1.5Kg (net weight of instrument)
Alarm method:On-site sound and light alarm, external alarm, remote controller alarm, computer data acquisition software alarm, etc.
Alarm setting:Standard configuration two-level alarm, optional three-level alarm; alarm mode can be set: conventional high and low alarm, interval control alarm

Online Dust Detector Working Principle

Our online dust detector uses the principle of laser scattering.

Laser scattering method: measures the degree of scattering of light by particles in the air.

When light passes through air containing particles, the particles scatter the light. The detector calculates the dust concentration by measuring the intensity of the scattered light.

This sensor consists of a sampling head, a detection device, a single-chip microcontroller system, and an air extraction system. It offers fast and accurate measurements, high detection sensitivity, stable performance, and simple maintenance. Utilizing new technologies such as laser scattering technology and a highly reliable air extraction system, this sensor offers superior quality and technical advantages.

It is wall-mounted and works in conjunction with a controller. The controller’s single-chip microcontroller processes the data uploaded by the dust concentration meter, ultimately providing data display and output control.

Technical Support

Since most production workshops are explosion-proof zones, the primary consideration when selecting a dust detector is its explosion-proof rating. From a safety perspective, prioritize models certified for dual-environment explosion protection against both gases and dust.

Fixed dust detectors can be installed with a fixed bracket, pipe, or wall mount. The installation location should be in an area where dust gas may occasionally be present in the air during normal operation; at a release point where dust gas is likely to accumulate and be easily sampled.

In conveyor belt transport, install it 0.5 to 2 meters above the transfer point. In production workshops, install it approximately 2.5 meters above a pillar or wall. In areas with grinders, install it 0.5 to 2 meters above the grinder.

Bus systems, also known as RS485, and daisy-chain systems, also known as 4-20mA. Generally, most bus systems use 4-core shielded cables with two power wires and two signal wires, enabling longer transmission distances of approximately 1-2 km. Daisy-chain systems use 3-core cables with two power wires and one signal wire, where the power negative terminal and signal wire share the same conductor, allowing shorter transmission distances within 1 km.

How Gas Detectors Work: 4 Key Sensor Types

Posted on
A gas detector is a safety device designed to identify the presence of specific gases within an area, often as part of a system to alert personnel to hazardous conditions….

5 Essential Factors for Choosing Multi Gas Detectors

Posted on
Multi-gas detectors simultaneously measure multiple gases, typically including oxygen (O₂), combustible gases (LEL), carbon monoxide (CO), and hydrogen sulfide (H₂S), which are common threats in industrial environments and confined spaces….

Online Dust Detectors can be placed directly in environments with high dust concentrations to detect dust concentrations in the environment in real time. You can set corresponding high and low alarm values. Detect the dust content in the environment, support linkage with fans and exhaust fans, reduce dust concentration in the environment in real time, and protect personnel safety in production.

Sino-Inst’s Online Dust Detectors are suitable for real-time and accurate detection of dust concentration and leakage in various environments. If you need dust monitoring, please feel free to contact our sales engineers!
