The BOD-201 online BOD digital sensor is an industrial grade water biochemical oxygen demand online monitoring device designed specifically for detecting the degree of organic pollution in water quality. It is suitable for controlling BOD indicators in multiple scenarios such as municipal sewage and industrial wastewater, and is easy to install, low consumption, and stable. It provides accurate data support for ecological assessment and standard discharge of water bodies.
★★★★★
Parameters
| Item | Specification |
|---|---|
| Measuring Range | 0-500mg/L; 0-450mg/L |
| Resolution | 0.1mg/L |
| Accuracy | ±5% |
| Operating Temperature | 0-50℃ |
| Storage Temperature | 5-65℃ |
| Operating Pressure | ＜0.2MPa |
| Power Supply | 12-24VDC |
| Signal Output | RS-485(Modbus/RTU) |
| Calibration Method | Two-point Calibration |
| Mounting Method | Immersion Installation |
| Housing Material | 316L Stainless Steel |
| Protection Grade | IP68 |
| Cable Length | 5m standard (Other lengths customizable) |
Why choose BOD201 digital sensor?
- 0-500/0-450mg/L dual range, 0.1mg/L high-resolution, ± 5% accurate measurement
- IP68 high protection, 316L stainless steel shell, 0-50 ℃/<0.2MPa suitable for complex water quality conditions
- RS485 (Modbus/RTU) standard output, directly connected to industrial control system, stable data transmission
- Immersion installation, 5-meter standard cable customizable, suitable for multiple scenarios such as sewage tanks and pipelines
- Two point calibration is easy to operate, designed with low power consumption, and meets 24-hour long-term online monitoring requirements
Featured Applications
- Municipal sewage treatment: BOD monitoring of sewage plant inflow, biochemical tank, and effluent to guide biochemical process regulation
- Industrial wastewater testing: BOD control of chemical, food, printing and dyeing, and aquaculture wastewater to ensure compliance with discharge standards
- Surface water monitoring: Long term monitoring of BOD in rivers, lakes, and reservoirs to assess the degree of organic pollution in water bodies

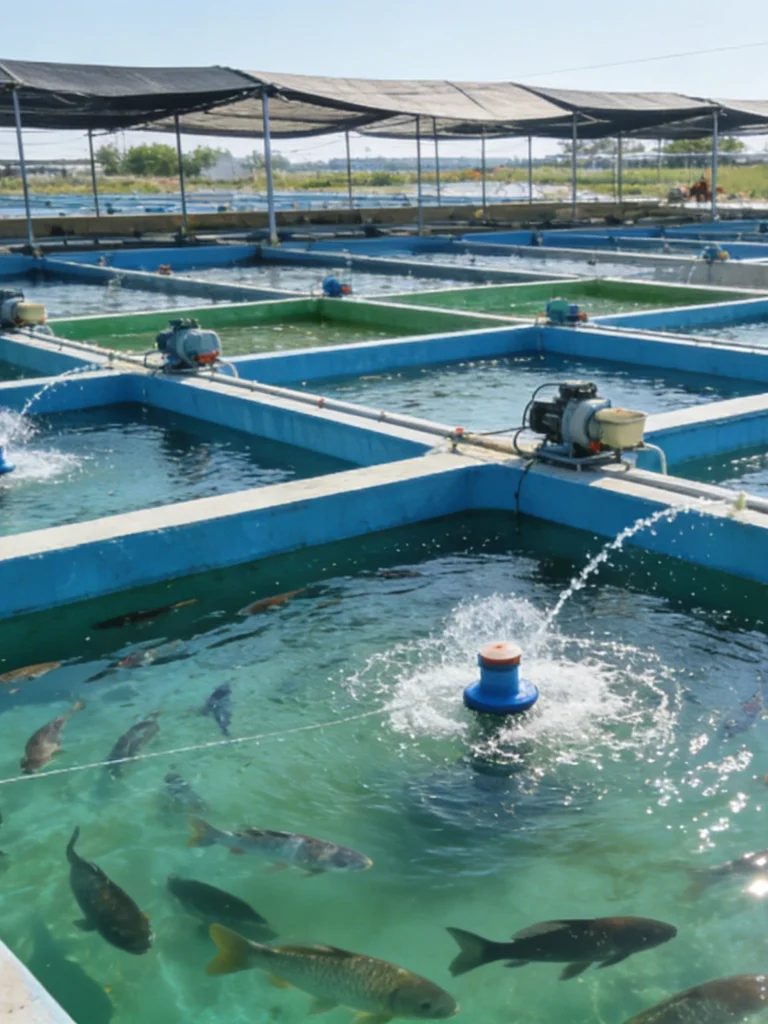

Industrial park supervision: Real time monitoring of BOD at sewage outlets and sewage pipe networks to achieve precise control of pollution sources - Aquaculture operation and maintenance: BOD monitoring in aquaculture ponds to control water ecology and prevent water quality deterioration from affecting aquaculture
Installation and wiring
Installation requirements
- Adopting immersion installation, fully immerse the sensor detection end into the water being tested, ensuring that the detection surface is in full contact with the water sample without obstruction;
- The installation location should avoid strong water flow impact, areas with large amounts of suspended solids accumulation, and dead corners of the tank body to prevent impurities from adhering and affecting measurement accuracy;
- After installation, keep the sensor fixed to avoid shaking, collision, and damage to internal components;
- Strict waterproof sealing treatment should be carried out at the wiring junction, and standard cables should be fixed to prevent pulling and damage, and to prevent water infiltration;
Maintenance and Calibration
Routine maintenance
- Regularly rinse the detection end with distilled water to remove suspended solids, algae and other impurities, and avoid blocking the detection surface;
- When there is scaling on the detection end, gently wipe and clean it with a soft cloth, and prohibit hard objects from scratching the detection components;
- Regularly check the waterproofing of cables and wiring connections, and promptly repair and handle any damages or looseness.
Calibration operation
- Using the two-point calibration method, the detection end must be cleaned thoroughly before calibration to ensure no impurities remain;
- Calibrate once every 1-3 months under normal operating conditions, and shorten the calibration cycle for high turbidity and high organic pollution water quality.
Technical Support
Top 6 Industrial Gas Analyzers Manufacturers 2025
Introduction to Industrial Gas Analyzers Industrial gas analyzers are critical instruments used across numerous sectors to measure and monitor the composition of gas mixtures in various processes. These sophisticated devices…
6 Best Industrial Gas Detector Manufacturers in the World
With industrial safety standards becoming more stringent each year, organizations worldwide are investing in high-precision gas detection technologies. Choosing the Best industrial gas detector manufacturers ensures operational safety, regulatory compliance,…
9 Best Portable Carbon Dioxide Detector 2025 – Complete Buying Guide
Why You Need the Best Portable Carbon Dioxide Detector In today’s world where air quality monitoring has become increasingly important, having the best portable carbon dioxide detector is crucial for…
Top 7 portable combustion analyzer Tested
Introduction to Portable Combustion Analyzers A portable combustion analyzer is an essential diagnostic tool for technicians, engineers, and facility managers working with combustion systems. These sophisticated instruments measure and analyze…
BOD-201 online BOD sensor has high precision and protection, suitable for monitoring organic pollution in water bodies in multiple scenarios. 316L stainless steel material+IP68 protection, suitable for complex water quality conditions; Immersion installation, Modbus standard output, easy deployment, stable data, low consumption and easy operation and maintenance, it is a high-quality choice for online monitoring of water quality BOD indicators. The supply is sufficient and can be customized. Welcome to consult and purchase!
Request a Quote
