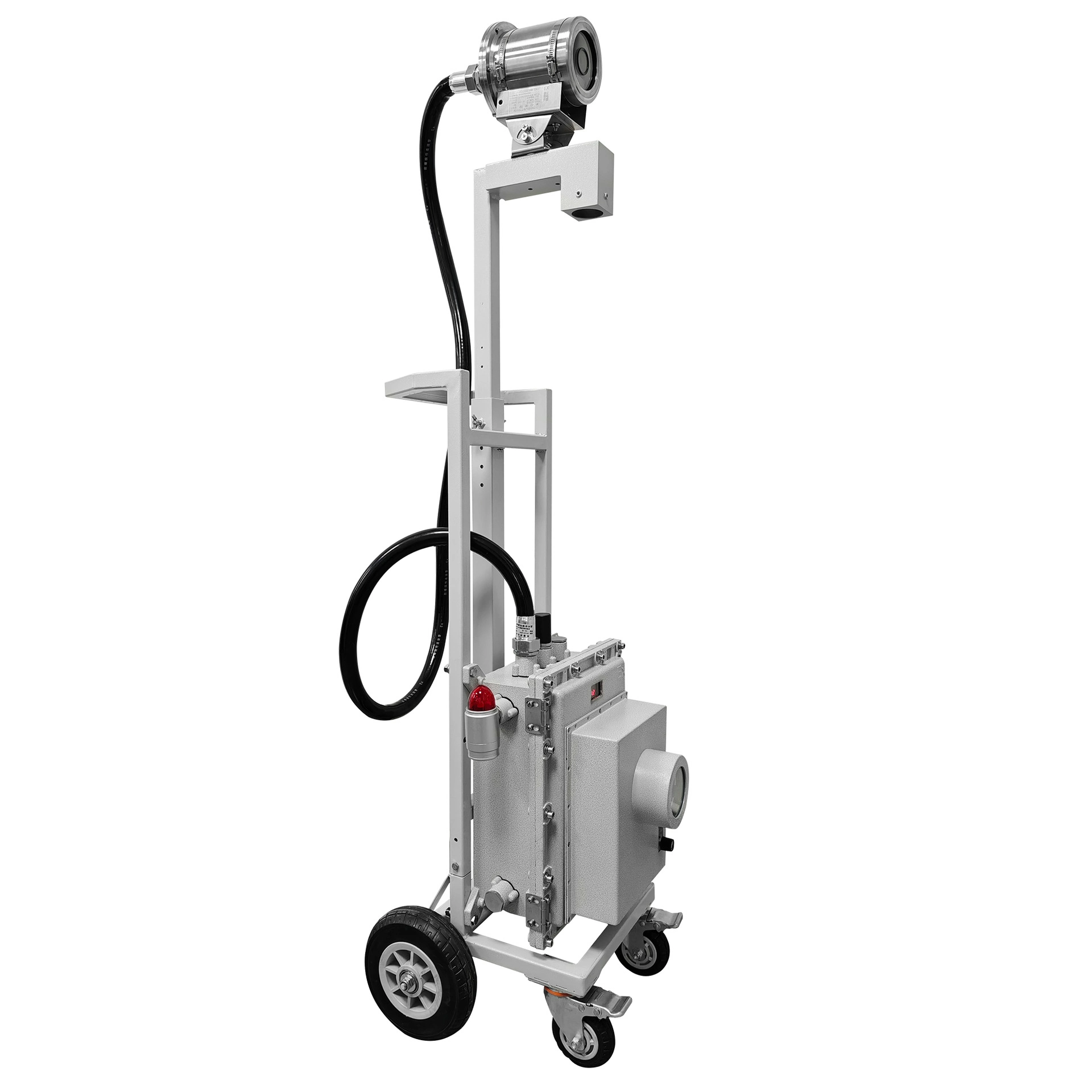

Movable Multi Gas Monitor with Pump

Movable Multi Gas Monitor with Pump is a new confined space alarm product launched by Sino-Inst. It is mainly used in hazardous areas for maintenance, construction, fire, emergency rescue and other environments.

Movable Multi Gas Monitor integrates multi-channel gas detection, high-power pump suction, high-definition video, sound and light alarm and other functions. The alarm network can be established wirelessly to realize wireless sharing of alarm information.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • Real-time monitoring and video surveillance of various flammable and toxic gases in hazardous environments.
  • High-definition explosion-proof camera, video supports full network viewing. It can also be viewed via 4G remote transmission to mobile phones and computers.
  • The operation status video is uploaded to the gas safety intelligent management and control platform in real time.
  • Data viewing, analysis and storage are convenient through computers, mobile phones and other devices.
  • Movable gas detectors are usually small in size, light in weight and easy to move. It is convenient for operators to use when facing temporary inspection and maintenance operations.
  • It can detect gas concentration in real time and continuously. Once harmful gases are found to exceed the standard, an alarm will be issued immediately.
  • It can detect multiple gases such as flammable gases, toxic gases, O2, CO2, TVOC, etc.
  • Long battery life, 80 hours of uninterrupted detection can be achieved with standard configuration;
  • Aluminum alloy cast explosion-proof housing, sturdy and durable;
  • Explosion-proof certificate level: ExdIICT6/ExdIIBT6;

Specifications

Measuring gasCombustible, oxygen, carbon monoxide, hydrogen sulfide, etc.
Range selectionCombustible: 0-100%LEL
Oxygen: 0-30%VOL
Carbon monoxide: 0-500PPM
Hydrogen sulfide: 0-100PPM
(For more ranges, please contact customer service)
Sampling accuracy±2%F.S
Operating temperature-30 ～ 50℃
Storage temperature-40 ～ 70℃
Operating current≤50mA
Operating voltage12~30V
Installation methodHand-push movable
Dimensions1540X50X42
Protection levelIP64
Detection principleElectrochemistry, catalytic combustion, PID, Photoion infrared, NDIR
ResolutionEX: 0.1%LEL
O2: 0.1%VOL
CO: 1PPM
H2S: 0.1PPM
For high resolution, please contact customer service
Response timeT90<10S
Operating humidity0-95%RH
Warm-up time10S
Operating pressure86kpa-106kpa
Shell materialDie-cast aluminum, Teflon paint
Warranty period1 year
Service life3-5 years
Explosion-proof levelExdIIBT4Gb
Receiving deviceUser computer, mobile phone, web page, control alarm, PLC, DCS, DDC, etc.
Alarm methodOn-site sound and light alarm, external alarm, remote controller alarm, computer data acquisition software alarm, etc.
Alarm settingStandard configuration of two-level alarm, optional three-level alarm; alarm mode can be set: conventional high and low alarm, interval control alarm
Output signalGPRS, 4G, WIFI, LORA, ZigBee and other wireless signals video surveillance
Transmission distanceGPRS, 4G, WIFI, wireless transmission: no distance limit, built-in module, through mobile, Unicom or Telecom signal transmission, can bring SMS reminder notification function LORA, town up to 2-5Km , up to 20 km in the suburbs
Battery power supplyRechargeable lithium battery 2800mAh (24V); single gas working time is greater than 16 hours, four-in-one gas working time is greater than 12 hours (all without air pump working state); lithium battery with air pump 6800mAh (24V) battery capacity can be customized according to needs
ChargerSpecial charger for lithium batteries; input: AC 100-240V 50, 60Hz; output: DC 25.5V-2A; output interface: DC male, 5.5mm * 2.1mm

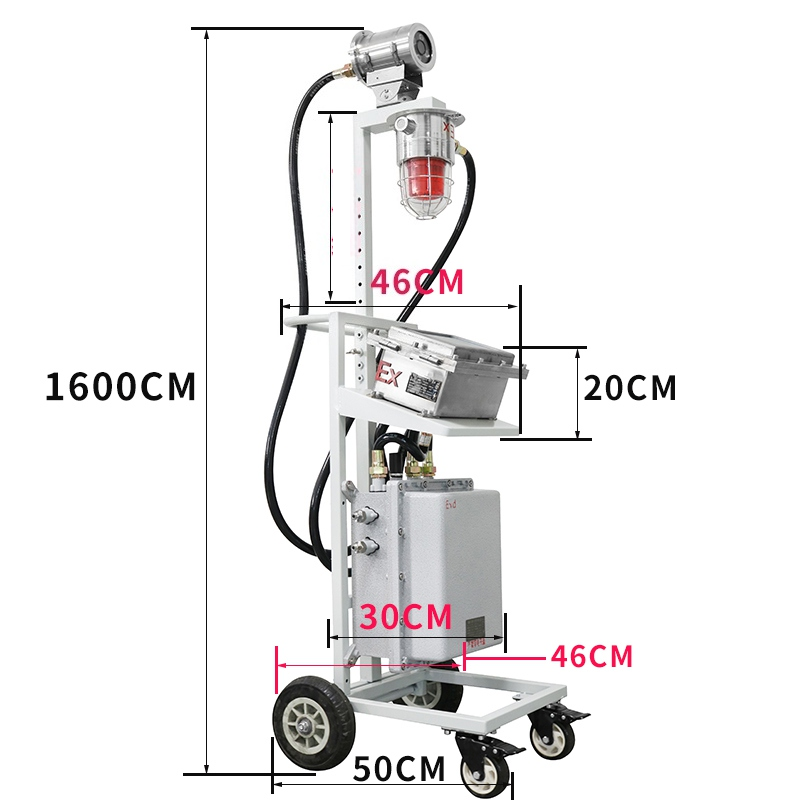

Movable-Multi-Gas-Monitor-with-Pump-Dimensions

Industrial Applications

Movable Multi Gas Monitor with Pump is widely used in:

  • Safety protection in hazardous areas;
  • Petroleum, petrochemical, chemical plants;
  • Smelters, steel plants;
  • Coal plants, thermal power plants;
  • Medical research, pharmaceutical production workshops;
  • Tobacco companies, environmental monitoring;
  • School research, building construction;
  • Fire alarm;
  • Sewage treatment;
  • Industrial gas process control;
  • Boiler room;
  • Garbage treatment plant;
  • Tunnel construction, oil pipelines, gas stations, underground gas pipeline maintenance;
  • Indoor air quality testing;
  • Aerospace, equipment monitoring, etc.


Technical Support

A multi-gas monitor is a device that can detect two or more gases simultaneously. Traditional gas detectors typically only detect a single gas, while multi-gas detectors can detect multiple gases simultaneously, offering greater comprehensive performance and practicality.

A multi-gas detector typically consists of a sensor, a main unit, and a display. The sensors detect various gases and then display the results on the display.

Yes. A gas detector can simultaneously detect the concentrations of multiple gases, known as a multi-gas detector. Both fixed and portable gas detectors can be customized to detect multiple gases.

For example, a common four-in-one gas detector can simultaneously detect oxygen, hydrogen sulfide, carbon monoxide, and combustible gases. Users can also choose other gases based on on-site testing needs. Gas detector manufacturers configure different sensors based on these requirements.

5 Essential Factors for Choosing Multi Gas Detectors

Posted on
Multi-gas detectors simultaneously measure multiple gases, typically including oxygen (O₂), combustible gases (LEL), carbon monoxide (CO), and hydrogen sulfide (H₂S), which are common threats in industrial environments and confined spaces….

Movable Multi Gas Monitor is equipped with surveillance cameras and adopts explosion-proof design. It adopts aluminum alloy shell, beautiful appearance, and is equipped with a movable cart to facilitate changing the work site at any time.

Sino-Inst’s gas detector integrates multi-channel gas detection, high-power pump suction, high-definition video, sound and light alarm and other functions. It supports customization of measured gas.

If you need gas detection and gas monitoring, please feel free to contact our sales engineer!
