Handheld Multi Gas Detector-Wireless

Handheld Multi Gas Detector uses high-performance intelligent gas sensors. It can perform mobile online monitoring of multiple component gases (toxic and harmful gases, combustible gases, oxygen, carbon dioxide, and volatile organic compounds VOC, TVOC). 1~4 kinds of gases, 24 hours of continuous online monitoring and temperature and humidity measurement. On-site display of concentration and excessive sound and light alarms, remote data transmission.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • A 2.5-inch high-definition color screen is used to display the concentration in real time;
  • It can detect the gas concentration in pipelines or confined spaces and atmospheric environments. It can also detect gas leaks and the purity of high-concentration single gases.
  • The sturdy and durable explosion-proof shell and fluorocarbon paint surface treatment process are suitable for various hazardous places and corrosive environments with strong acids and alkalis. Wear-resistant, no fading and paint peeling within 10 years.
  • More than 30 kinds of plug-and-play intelligent original imported sensors are available for selection and flexible configuration. Such as volatile organic compounds VOC, toxic and harmful electrochemical sensors and oxygen, catalytic combustion sensors and infrared sensors.
  • Automatically detect the working status of each sensor and component when powered on.
  • Supports free switching of PPM and mg/m3, %VOL and mg/L concentration units.
  • Real-time data transmission, local and remote wireless alarm notifications can be accurately issued in a variety of alarm modes.
  • GPRS, 4G, WIFI, LORA, ZigBee and other wireless signals. Real-time detection data and alarm status can be transmitted to the security center through the built-in wireless module function.
  • Explosion-proof grade Exd II CT6.

Specifications

 Measuring gasCombustible gas, oxygen, carbon monoxide, hydrogen sulfide, etc.
Range selectionCombustible: 0-100%LEL
Oxygen: 0-30%VOL
Carbon monoxide: 0-500PPM
Hydrogen sulfide: 0-100PPM
(For more ranges, please contact customer service)
 Sampling accuracy±2%F.S
 Working temperature-30～50℃
 Storage temperature-40～70℃
 Working current≤50mA
 Working voltage12~30V
 Installation methodVertical, mobile
 DimensionsHeight 460mm×Width 340mm×Thickness 115mm
 Protection levelIP66 waterproof splash and short-term rain
 Receiving deviceUser computer, mobile phone, web page, control alarm, PLC, DCS, DDC, etc.
 Alarm methodOn-site sound and light alarm, external alarm, remote controller alarm, computer data acquisition software alarm, etc.
 Alarm settingStandard configuration two-level alarm, optional three-level alarm; alarm mode can be set: conventional high and low alarm, interval control alarm
 Output signalGPRS, 4G, WIFI, LORA, ZigBee and other wireless signals (camera optional (optional for trolley)
 Transmission distanceGPRS, 4G, WIFI, wireless transmission: no distance limit, built-in module, through mobile, Unicom or telecom signal transmission, with SMS reminder notification function
LORA, up to 2-5Km in towns, up to 20Km in suburbs
 Battery power supplyRechargeable lithium battery 2800mAh (24V); single gas working time is greater than 16 hours, four-in-one gas working time is greater than 12 hours (all without air pump working
status); lithium battery with air pump 6800mAh (24V) battery capacity can be customized according to needs
  ChargerSpecial charger for lithium battery; input: AC 100-240V 50, 60Hz; output: DC 25.5V-2A; Output interface: DC male, 5.5mm*2.1mm
Detection principleElectrochemical, catalytic combustion
ResolutionEX:0.1%LEL
O2:0.1%VOL
CO:1PPM
H2S:0.1PPM
For high resolution, please contact customer service
Response timeT90<10S
Working humidity0-95%RH
Warm-up time10S
Working air pressure86kpa-106kpa
Casing materialDie-cast aluminum, Teflon paint
Warranty period1 year
Service life3-5 years
Explosion-proof levelExdIICT6

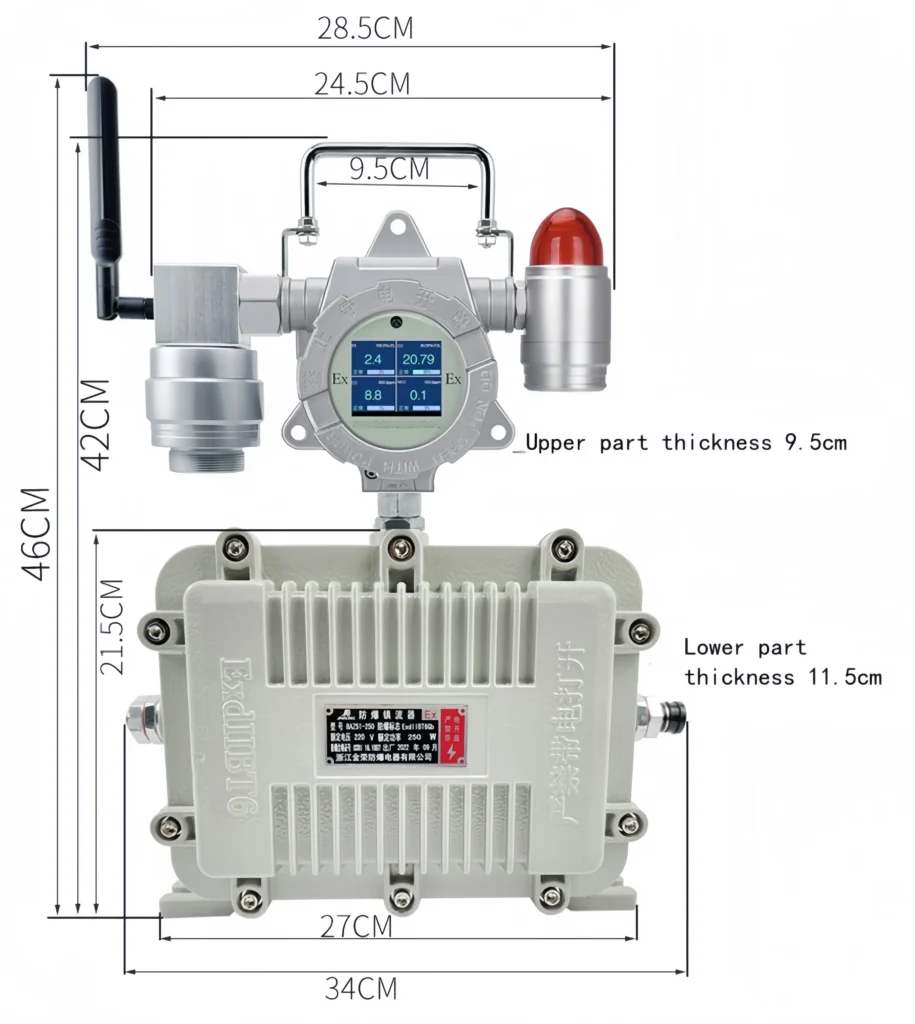

Handheld-Multi-Gas-Detector-Dimensional-Drawing

Industrial Applications

Handheld Multi Gas Detector can detect a variety of gases, including but not limited to:

  • Combustible gases in the air EX,
  • Carbon monoxide CO,
  • Oxygen O2,
  • Hydrogen sulfide H2S,
  • Carbon dioxide CO2,
  • Combustible CH4,
  • Ammonia NH3,
  • Hydrogen H2,
  • Sulfur dioxide SO2,
  • Nitrogen N2,
  • Formaldehyde CH2O,
  • Ozone O3,
  • VOC, TVOC,
  • Benzene,
  • Phosphine PH3,
  • Hydrogen fluoride,
  • Hydrogen chloride,
  • Chlorine,
  • Nitrogen monoxide,
  • Nitrogen dioxide,
  • Fluorine,
  • Toxic and harmful and combustible gases.

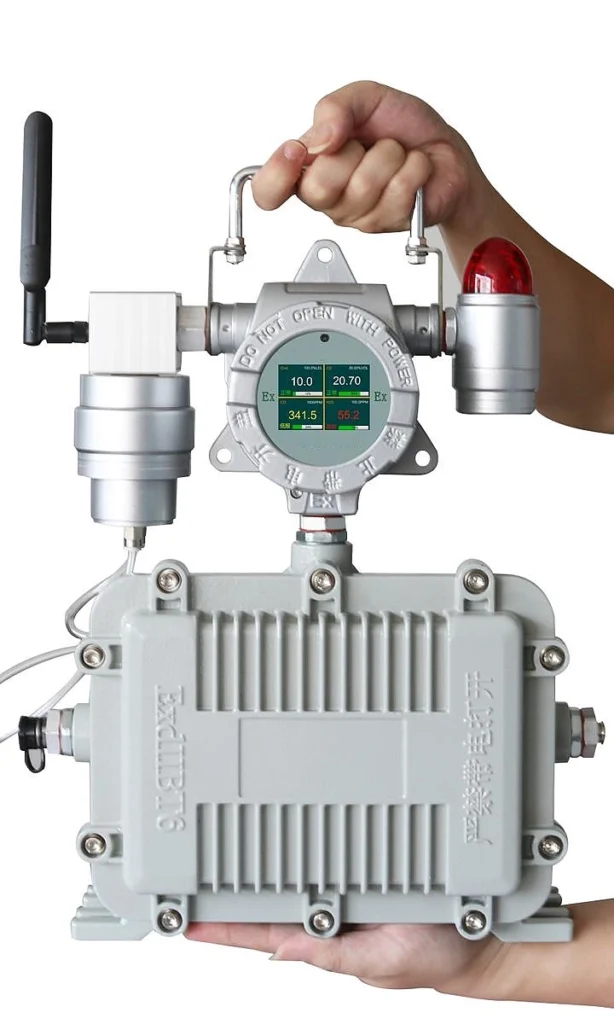

Handheld-Multi-Gas-Detector-Application

Mostly used in the following industries:

  • Smelters, steel mills;
  • Coal plants, thermal power plants;
  • Medical research, pharmaceutical production workshops;
  • Tobacco companies;
  • Environmental monitoring;
  • School research, building construction;
  • Fire alarm;
  • Sewage treatment;
  • Industrial gas process control;
  • Boiler rooms;
  • Garbage treatment plants;
  • Tunnel construction;
  • Oil pipelines, gas stations, etc.

Technical Support

Yes. A gas detector can simultaneously detect the concentrations of multiple gases, known as a multi-gas detector. Both fixed and portable gas detectors can be customized to detect multiple gases.

For example, a common four-in-one gas detector can simultaneously detect oxygen, hydrogen sulfide, carbon monoxide, and combustible gases. Users can also choose other gases based on on-site testing needs. Gas detector manufacturers configure different sensors based on these requirements.

Yes. Using a multi-gas detector requires a basic understanding of its principles and techniques. For example, different detection methods can be categorized as optical, electrochemical, and chemichromic. Each type of gas detector operates differently, requiring an understanding of the detection process and the interactions between its components.

  • A multi-gas detector’s high-precision sensors and advanced technology make it relatively expensive.
  • It is also susceptible to environmental factors. For example, extreme heat, high humidity, and dusty environments can affect sensor accuracy and lifespan.
  • Although it can detect multiple gases simultaneously, the detection range of each gas may be limited.
  • For gas detection in certain specific gases or under special circumstances, additional specialized instruments may be necessary.

5 Essential Factors for Choosing Multi Gas Detectors

Posted on
Multi-gas detectors simultaneously measure multiple gases, typically including oxygen (O₂), combustible gases (LEL), carbon monoxide (CO), and hydrogen sulfide (H₂S), which are common threats in industrial environments and confined spaces….

Wireless Handheld Multi Gas Detector can monitor multiple gas components online. Single, two-in-one, three-in-one, and four-in-one are available. Including toxic and harmful gases, combustible gases, oxygen, carbon dioxide, and volatile organic compounds VOC, TVOC, etc.

Sino-Inst’s Handheld Multi Gas Detector effectively monitors the gas concentration in the environment. Protect the life safety of operators.
If you need to choose a gas detector, please feel free to contact our sales engineer!
