GRT1030W pH ELECTRODE STABLE ANTI-POISON

GRT1030W is a high-performance plastic shell pH electrode designed specifically for harsh industrial environments. Anti fouling ring PTFE connector and solid gel electrolyte salt bridge are used to eliminate S ² and other core problems such as poisoning and blockage, and provide consistent and accurate pH data for environmental protection and lime slurry monitoring.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • Adopting anti fouling circular polytetrafluoroethylene liquid interface, it is not easy to block and can be detected online for a long time;
  • Easy to use, no need to supplement dielectric, low maintenance required;
  • Gel dielectric salt bridge can effectively prevent electrode poisoning;
  • Using special glass sensitive film, suitable for pH measurement under various conditions;
  • Low internal resistance of electrodes, fast response, and good stability;
  • Adopting terminal block method, equipped with standard 3/4 inch thread.

Specifications

ParameterValue
Measurement Range0-14 pH
Theoretical percentage slope≥95%
Zero potential7±0.5
Temperature Range0-60℃
Pressure Range0-0.4 M Pa
Internal Resistance≤ 250 MΩ at 25 degrees
Thread Size3/4 inch NPT

Scope of Application

  • Suitable for environmental protection, lime slurry, and online testing.

Maintenance

  • Before you begin the process of taking measurements, you should clean the electrode by rinsing it with distilled water and then pat it dry using a piece of filter paper.
  • In order to maintain a full protective cap, it is necessary to keep it filled with a 3.3mol/L solution of potassium chloride when it is not being used.
  • Avoid leaving yourself in distilled water, protein solutions, or acidic chloride solutions for an extended period of time.
  • Use a small amount of an acidic solution of hydrochloric to cleanse If you notice that the glass membrane has become foggy or has deposits on it, clean it with water.
  • In order to ensure optimal functioning, the pH meter should be cleaned and calibrated on a weekly basis. When it comes to the consistent application of lime slurry, this is quite crucial.
  • The sensor will be unable to regain its response if you are unable to carry out the calibration procedure on the sensor by employing the aforementioned procedures for maintenance and upkeep. Could you please provide a new sensor?

Ideal Use Cases:

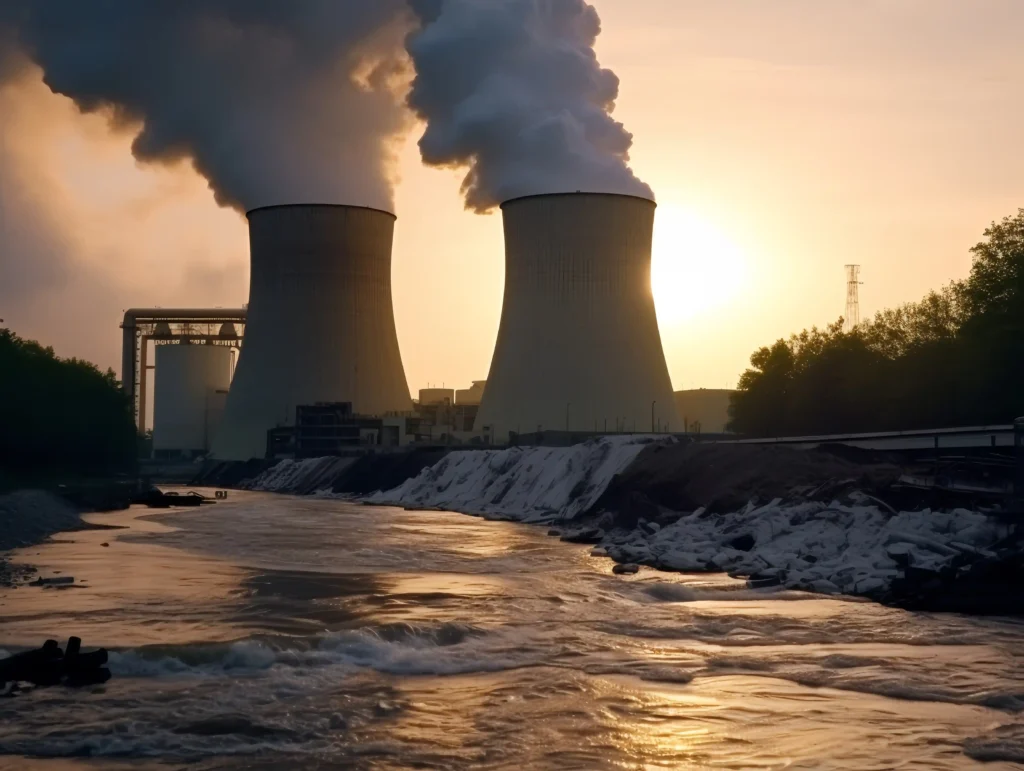

Monitoring for Environmental Protection

The anti-poison design works with industrial wastewater that has S²⁻/CN⁻ ions, which makes sure that the data is stable for discharge compliance.

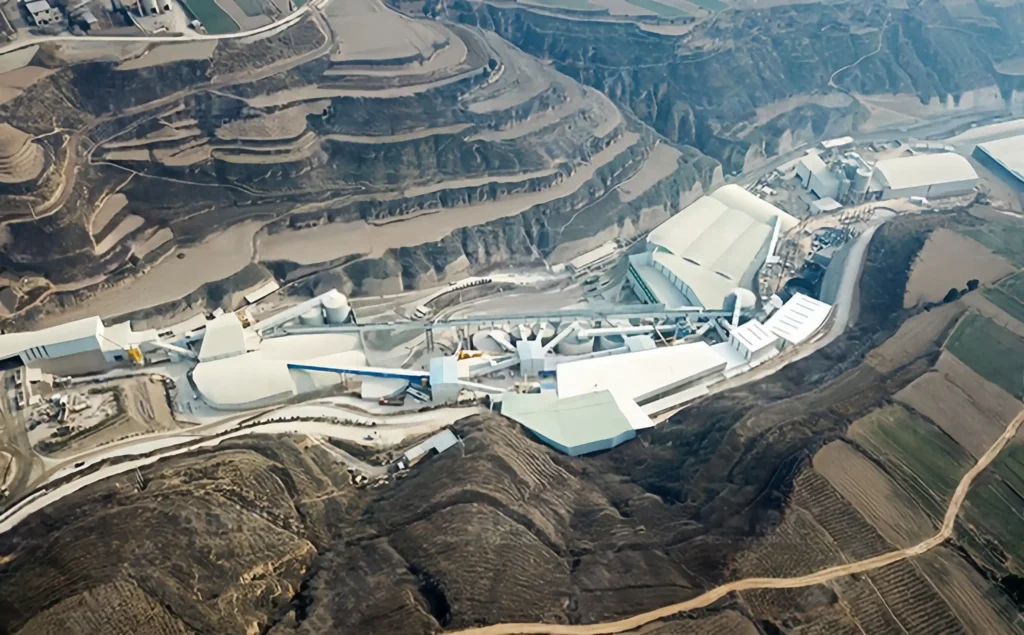

Monitoring Lime Slurry

The special planar membrane stops slurry from sticking, which keeps measurements accurate in high-viscosity lime slurry systems.

Water for Chemical Processes

Solid gel electrolyte doesn’t leak, thus it’s good for chemical wastewater lines and neutralization reaction tanks.

Treatment of Wastewater from Industry

Not fouling The PTFE connection stops blockages, which cuts down on maintenance in wastewater with a lot of suspended materials.

Sensor diagram illustration

  1. After opening the packaging, check whether there is mechanical damage to the sensitive bulb and electrode body of the electrode.
  2. Remove the sensor protective cover and check if there are any bubbles in the sensitive bulb of the electrode. If so, gently shake the sensor in a vertical plane to remove the bubbles.
  3. Select the corresponding sensor sleeve or cable head for installation according to different electrodes.
  4. The connection between the sensor wire and the electrode is not waterproof, please make sure to do a good job of waterproofing.

Technical Support

Common causes include: ① Air bubbles in the sensing bulb (shake vertically to remove); ② Contaminated PTFE junction (clean with soft brush and distilled water, especially for lime slurry residue); ③ Expired calibration (recalibrate with standard buffer solution, e.g., pH 4.01/6.86/9.18).

For industrial online use, calibrate every 2-4 weeks; for clean water (e.g., pure water systems), monthly calibration is sufficient. Calibrate immediately if the electrode is exposed to extreme pH media or after heavy cleaning.

Yes. Its particular planar sensing membrane can measure media with a pH of up to 14 without breaking down. But being in pH 13+ media for a long time may lower the service life by a few months (from 6 months to 4–5 months). To make sure the data is correct, we suggest calibrating more often, once every two weeks.

Its specialized planar glass membrane resists slurry adhesion and clogging, while the solid gel electrolyte maintains stable potential even in high-viscosity lime slurry—ordinary electrodes often fail due to membrane fouling here.

No. The GRT1030W can only handle temperatures up to 60 degrees Celsius. If you put it in media that is hotter than 60°C, the solid gel electrolyte and sensing membrane will be damaged, and the device will never work again. For situations with high temperatures (≤80°C), we suggest the GRT1020T model with a PVDF housing.

This is usually caused by PTFE junction blockage or membrane contamination. Clean the junction with a soft nylon brush dipped in 5% hydrochloric acid for 5 minutes, then rinse thoroughly with distilled water. For the sensing membrane, wipe gently with lens cleaning paper soaked in pH 4.01 buffer solution, then recalibrate—this will restore fast response performance.
