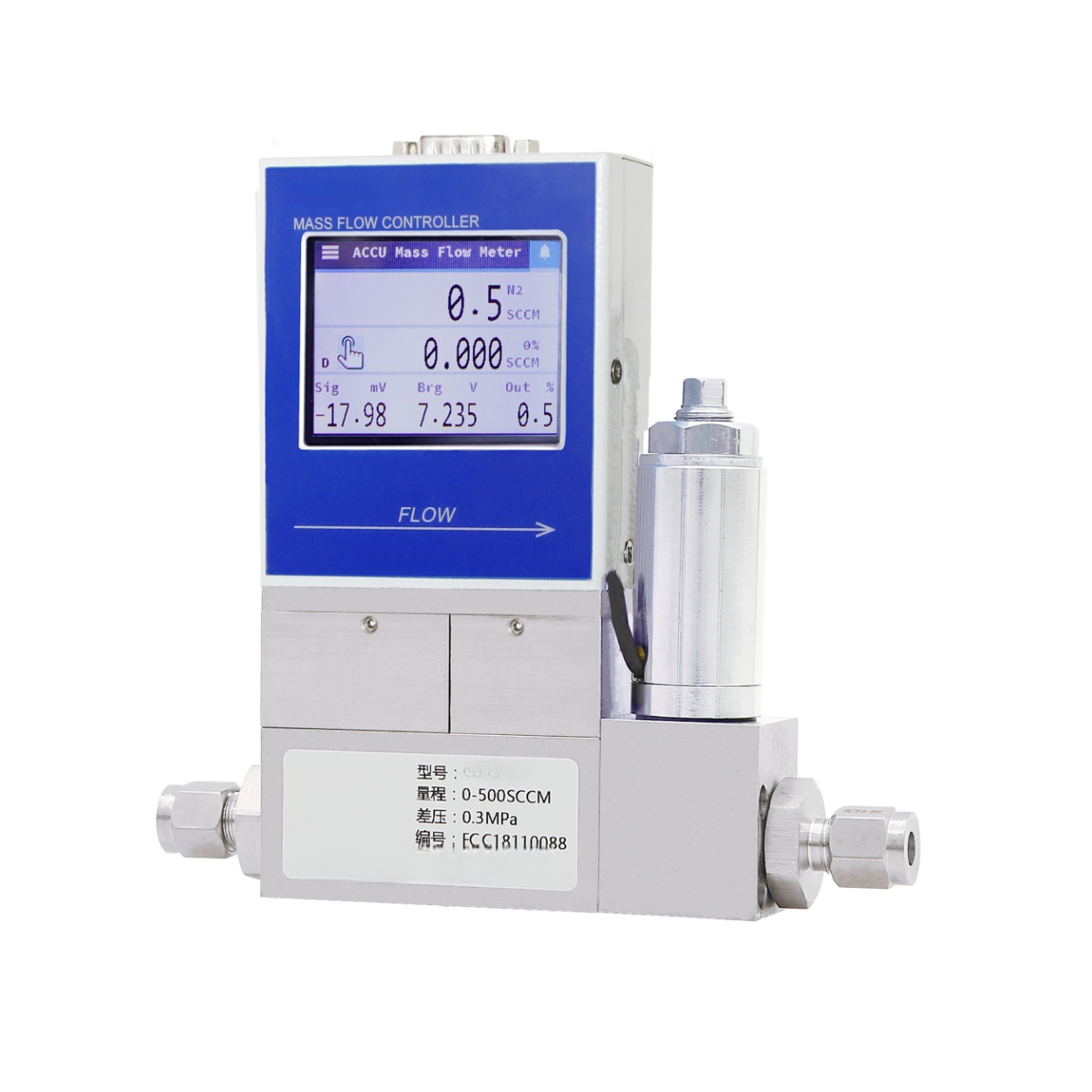

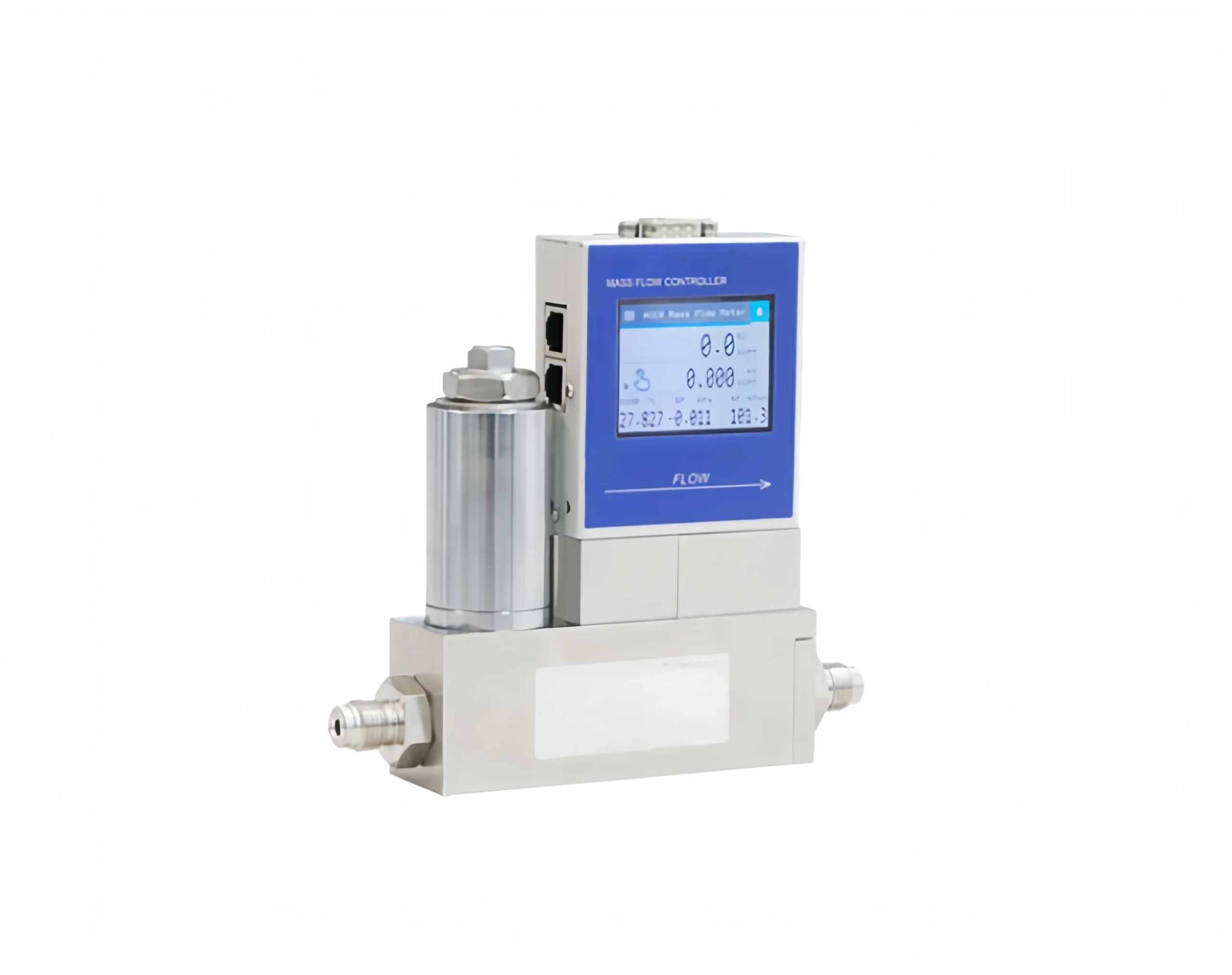

SI-20FC High-Accuracy DP Mass Flow Controller/Flow Meter

The SI-20FC series is a high-accuracy DP Mass Flow Controller/flow meter. It is widely used in various industries, such as process manufacturing, food analysis, analytical testing and measurement, etc. It can simultaneously display and output instantaneous flow rate, cumulative flow rate, pressure, temperature, etc. With a 50:1 adjustable range ratio, a single SI-20FC differential pressure mass flow controller can replace the function of multiple devices.

Accuracy of 0.5%, repeatability of 0.2%, and a control response time of less than 200 milliseconds ensure normal operation of process gases. When control functions are required, an electromagnetic proportional control valve and built-in PID control function can be added.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • Accuracy up to ±0.5% F.S.;
  • Repeatability up to ±0.2% F.S.;
  • Fast response and quick adjustment;
  • Touchscreen display;
  • Direct measurement of mass flow;
  • Simultaneous display of instantaneous and cumulative flow, pressure, and temperature;
  • Integrated PID controller for flow regulation;
  • No warm-up required, no response lag during measurement;
  • Differential pressure principle;
  • No thermal drift, negligible temperature drift and time drift;
  • Long-term stability: 0.1% F.S./year;
  • No additional error from thermal capacity, does not affect accuracy;

Specifications

Technical SpecificationsHigh-Accuracy Mass Flow ControllerHigh-Accuracy Mass Flow Meter
Range2SCCM～3000SLM
Measurement and control range ratioController valve range 50:1Flow rate range ratio 100:1
Accuracy±0.5%F.S (full scale)
Linearity±0.25%F.S
Repeatability±0.2%F.S
Stability<±0.1%FS
Response Time<0.2s<0.1s
Temperature Coefficient±0.025%F.S/℃
Operating Temperature10～50℃
Operating PressureOperating pressure difference: 0.1~0.5Mpa     Operating pressure drop <0.01Mpa
Maximum Pressure Rating1MPa
Leak Rate1 X 10-9 Pa m3/S
Base MaterialStainless steel
Connectorsφ8, φ10, φ12, flange mounting
Seal MaterialFluororubber, neoprene rubber, nitrile rubber
Enclosure Protection RatingIP40
Mounting PositionHorizontal mounting
Monochrome LED DisplaySimultaneous display of flow rate and settings
Electrical ConnectionsDB9 port, RJ11, 5.5×2.1 power quick connector
Display StatusWith LCD display, without LCD display
Digital OutputRS232/485, MODBUS protocol
Analog Output0～5V, 4-20mA, 1-5V
Power Supply ±15VDC，24VDC

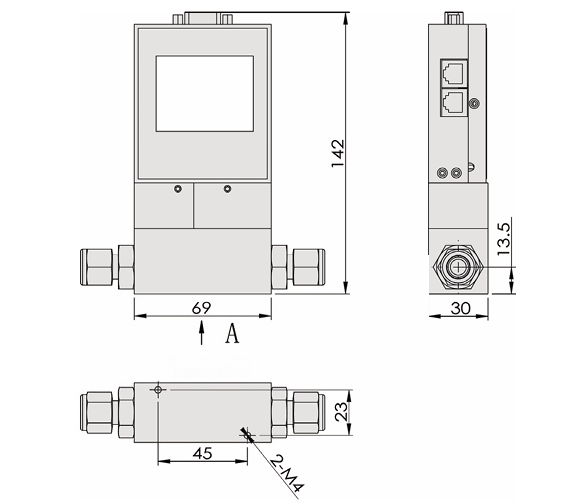

  • SI-20FC High-Accuracy DP Mass Flow Meter Low Range

    SI-20FC High-Accuracy DP Mass Flow Meter Low Range

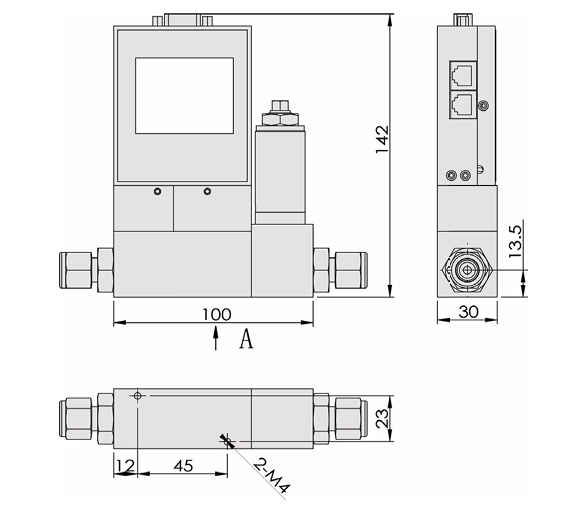

  • SI-20FC High-Accuracy DP Mass Flow Controller Low Range

    SI-20FC High-Accuracy DP Mass Flow Controller Low Range

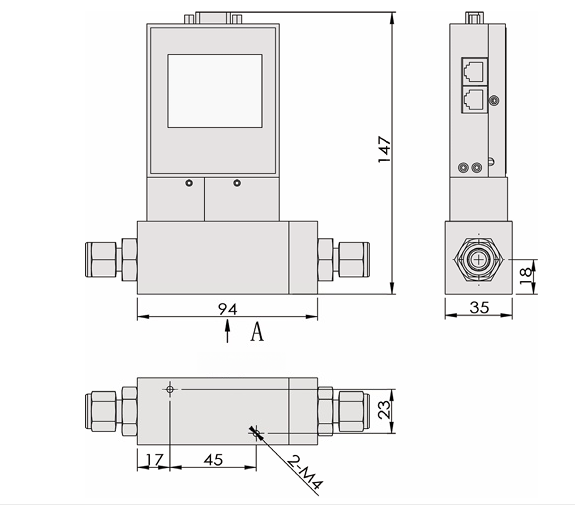

  • SI-20FC High-Accuracy DP Mass Flow Meter Medium Range

    SI-20FC High-Accuracy DP Mass Flow Meter Medium Range

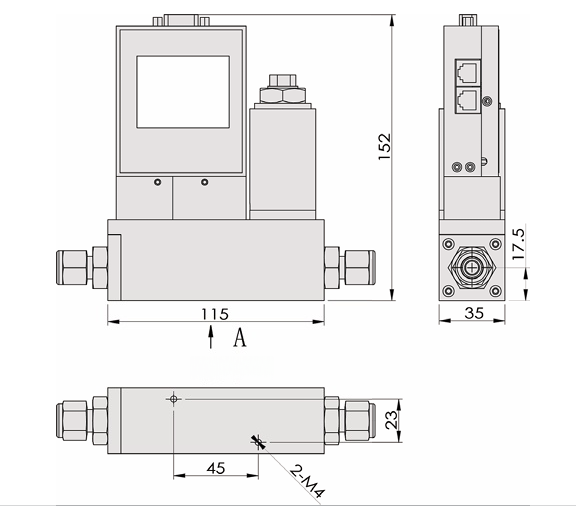

  • SI-20FC High-Accuracy DP Mass Flow Controller Medium Range

    SI-20FC High-Accuracy DP Mass Flow Controller Medium Range

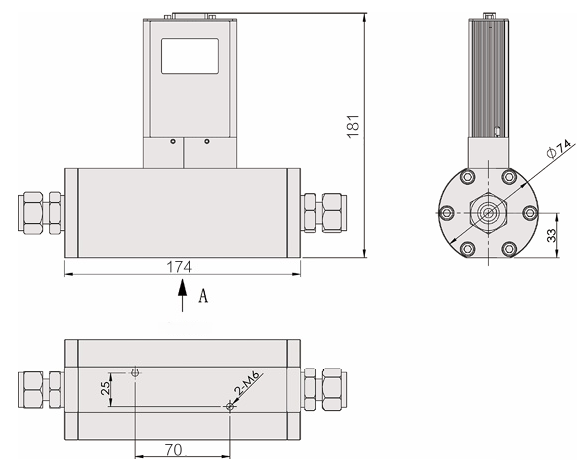

  • SI-20FC High-Accuracy DP Mass Flow Meter High Range

    SI-20FC High-Accuracy DP Mass Flow Meter High Range

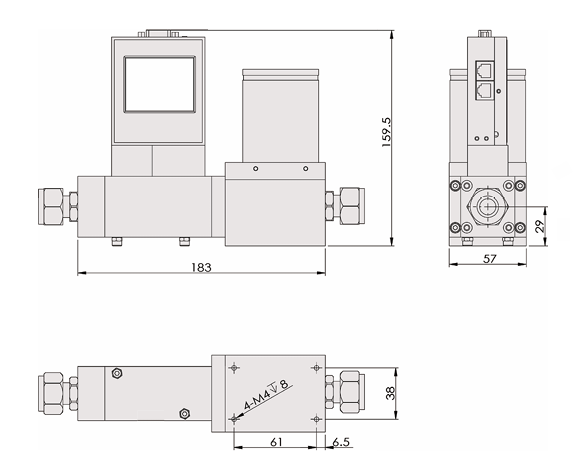

  • SI-20FC High-Accuracy DP Mass Flow Controller High Range

    SI-20FC High-Accuracy DP Mass Flow Controller High Range

Performance and Principle

The SI-20FC series is a high-precision differential pressure flow controller/flowmeter. This series utilizes a differential pressure mass flow measurement principle with no thermal drift and no response hysteresis, and can simultaneously display and output instantaneous flow rate, cumulative flow rate, pressure, and temperature.

For applications requiring control functions, an electromagnetic proportional control valve and built-in PID control can be added.

Unlike thermal mass flow meters, the SI-20FC series mass flow meters do not have an additional “specific heat capacity” error when using gas conversion coefficients. Therefore, even if the measured gas differs from the factory calibration gas, it will not affect the measurement accuracy.

Compared to traditional differential pressure flow controllers, the SI-20FC series features a more sensitive sensor and a large touchscreen display, resulting in significant improvements in both accuracy and ease of operation.

Applications in Laboratory and Industrial Environments

The SI-20FC series high-precision differential pressure flowmeter/controller achieves a measurement accuracy of ±0.5%, sufficient to meet the needs of most customers. It can be used in various laboratory experiments as well as in complex industrial environments.

To adapt to complex industrial environments, some of our models also support IP67 dust and water resistance and IICT4 intrinsically safe explosion protection. In addition to standard analog input/output interfaces, they also support 485/232 interfaces, and the communication protocol is the standard Modbus RTU protocol.

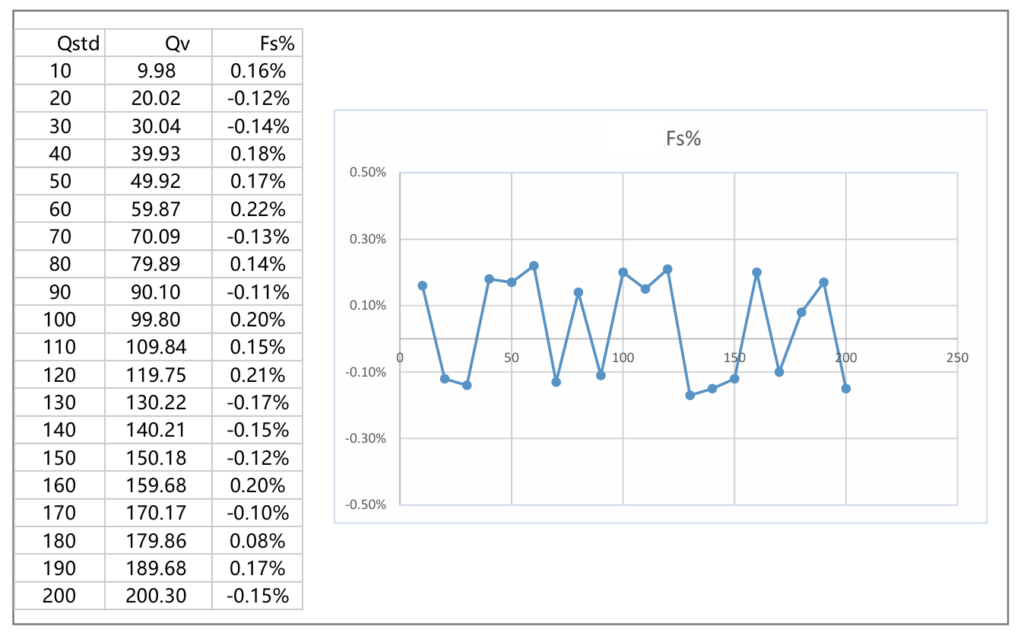

Calibration test

Calibration test


Technical Support

A flow controller is a device used to regulate and control the flow rate of liquids or gases. It ensures a stable flow rate within a set range by limiting the fluid’s velocity in a pipeline to meet the needs of process production.

A mass flow controller (MFC) is a precision instrument that automatically controls the mass flow rate of gases or liquids. Unlike a mass flow meter (MFM), an MFC not only measures the flow rate but also automatically adjusts it according to a set value, ensuring a stable flow rate despite changes in system pressure or ambient temperature.

A mass flow controller’s operation mainly involves two parts: measurement and regulation.

The measurement part is achieved through a mass flow sensor. The sensor measures the pressure difference and temperature changes as gas flows through the pipe, and then calculates the mass flow rate of the gas.

The regulation part is achieved through control valves. The control valves adjust the gas flow rate based on the signals fed back from the sensor, keeping it within a set range.

Yes, you can. However, you’ll usually need to modify the settings of the mass flow controller, such as changing the gas coefficient.

Sino-Inst offers hundreds of mass flow meters and controllers. To ensure we recommend the most suitable product for you, please confirm the following key information when selecting a model:

  1. Flow measurement/flow control;
  2. Name of the gas being measured and controlled;
  3. Required measurement range;
  4. Accuracy requirements;
  5. Front-end and back-end pressure values for the flowmeter/controller;
  6. Temperature of the measured gas;
  7. Ambient temperature at the equipment installation site;
  8. Controller monitoring targets: inlet pressure/outlet pressure;
  9. Communication method: Computer/PLC; Requirement for display screen;
  10. Required pipe connection specifications;
  11. Power supply conditions: 24V DC power supply/Mains power supply;
  12. Installation space environment: Any special requirements for product dimensions or electrical interface orientation?

In addition to the information mentioned above, any other special requirements must also be clearly communicated. Examples include: response speed, protection requirements; any special requirements regarding pressure loss; and whether the gas source is clean, etc.
