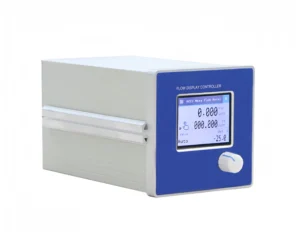

20FD-XS Intelligent Flow Controller

20FD-XS Intelligent Flow Controller

The 20FD-XS intelligent flow controller is generally used in conjunction with flow controllers or flow meters. It provides power to analog and digital mass flow controllers, and handles flow setting (manual operation control), flow display, and other operations.

The 2.4-inch color screen clearly and intuitively displays key information such as flow value, flow unit, media type, setpoint, and valve status. It is easy to use, with options for embedded/desktop installation, and boasts a refined and aesthetically pleasing design.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • Provides operating power for mass flow controllers or flow meters, supplying 24V or ±15V power;
  • Manual operation for flow rate setting;
  • Gas flow rate display;
  • The flow display unit is compatible with all flow meters or flow controllers manufactured by our company and can be used directly;
  • Can be used with other models of mass flow controllers;

Setpoint flow rate can be configured via four methods: analog, digital, knob, and touch panel:

  1. Digital setting via RS485 interface using Modbus RTU protocol;
  2. Analog signal setting via 0~5V or 4~20mA;
  3. Setting via touch panel;
  4. Setting via rotary knob.

Specifications

1Power Input100~240VAC, 50~60Hz
2Power Output24V, 1A 15V, 1A -15V, 1A (specific configuration customized according to MFC)
3Display Method2.4-inch high-definition color screen
4Control Channel1-channel MFC
5Operating Temperature0~50℃
6Digital QuantityRS485 MODBUS protocol
7Analog QuantityDC 0~5V, 4~20mA optional
8Opening Size92x92mm
  • 20FD-XS Intelligent Flow Controller Dimensions
    20FD-XS Intelligent Flow Controller Dimensions
  • 20FD-XS Intelligent Flow Controller Wiring Diagram
    20FD-XS Intelligent Flow Controller Wiring Diagram

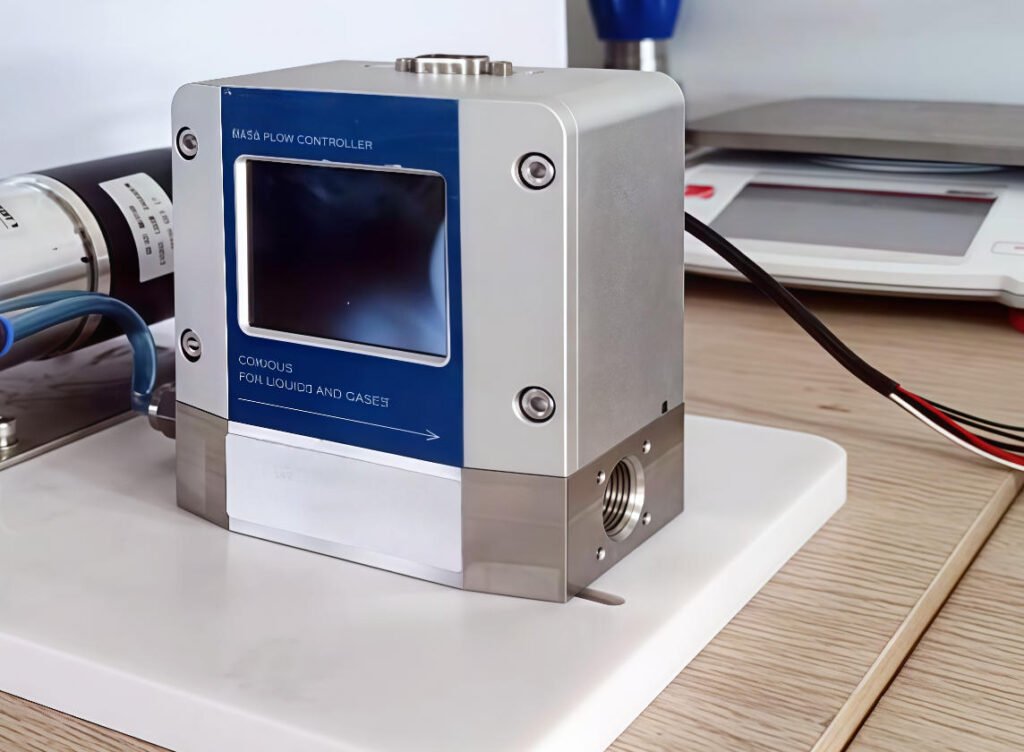

How Does a thermal mass flow controller working principle?
