The A11FC is a smart and adaptable industrial online corrosion rate measurement and control device that can accurately track corrosion rates. It has a lot of features, is easy to use, is very resistant to interference, and can monitor corrosion rates in real time, send signals, and control them intelligently. It is the best tool for studying metal corrosion and keeping an eye on corrosion in the industrial field.
★★★★★
Features
- Diverse languages, factory standard Chinese interface, switchable English interface
- Various temperature supplements, PT1000、NTC10K、 Three temperature compensation methods are available for manual temperature compensation
- 4-20mA output, corresponding to corrosion rate value or temperature, using isolation technology, strong anti-interference ability
- The high and low points of the three sets of relays can be switched freely, and the hysteresis can be adjusted freely to avoid frequent on-off of the relays
- Default provides a set of electrode automatic cleaning device contacts
- Password management function to prevent accidental operation by non professionals
- Menu prompt function, easy for users to operate
Parameters
| Item | Specification |
|---|---|
| Measurement Type | Average corrosion rate of metal materials |
| Temperature Compensation | PT1000, NTC10K, Manual temperature compensation (3 types optional) |
| Output Signal | 4-20mA isolated current output (corresponding to corrosion rate/temperature) |
| Relay Output | 3 groups of relays, high/low point switchable, adjustable hysteresis |
| Electrode Accessory | 1 set of automatic electrode cleaning device contact (default) |
| Compatible Electrodes | FC-CS-5M (carbon steel), FC-CU-5M (copper), FC-SS-5M (stainless steel) |
| Operation Interface | Chinese (standard), English (switchable) |
| Management Function | Password protection, menu prompt operation |
| Pipeline Fitting | DN25 tee pipe (standard configuration) |
| Power Supply | AC 220V (50/60Hz) / DC 24V (industrial standard) |
| Installation Method | Panel mounting / Wall mounting |
| Protection Grade | IP65 (industrial anti-corrosion and dustproof) |
| Anti-interference | Isolation technology for signal transmission |
Core Highlights
- The variable temperature compensation method supports PT1000, NTC10K, and manual temperature compensation, responds to industrial site temperatures, and ensures corrosion rate accuracy.
- Isolation technology prevents industrial electromagnetic interference and stabilizes data flow in the 4-20mA output.
- Intelligent relay control: Allowing the three sets of relays’ high and low points to be freely swapped and automatically adjusting the hysteresis minimizes repeated relay on-off and prolongs equipment life.
- By eliminating the need to physically disassemble and clean electrodes, automatic electrode cleaning device contacts save operating and maintenance costs.
Featured Applications
- Metal parts like heat exchangers, condensers, and pipes used in boiler feedwater and cooling water systems at power plants are checked for rust.

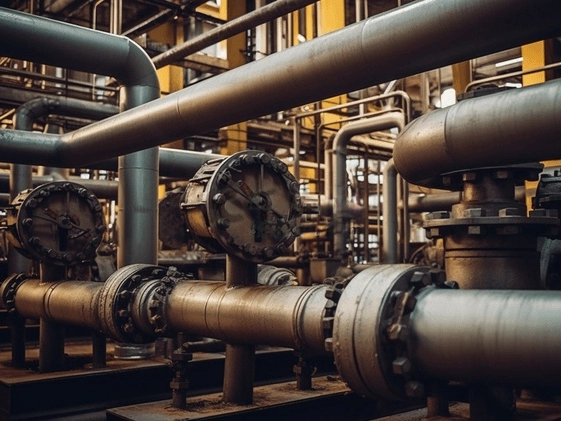

- Keeping an eye on how the water systems in refineries, chemical plants, and pipelines carrying crude oil rust in the petrochemical business.
- Acid washing, corrosion inspection, cooling circulating water systems, and steel and non-ferrous metal smelting plants are all part of the metallurgical business.
- In the food and drug businesses, keeping an eye on corrosion in metal pipes, tanks for clean water storage, and cooling systems for circulating water.
Daily maintenance and precautions
Installation precautions
- The host should be put in a well-ventilated, dry place away from strong magnets and earthquake sources. It can be put on a disk or the wall.
- At the monitoring point, the electrode has a DN25 tee fitted to make sure it is completely submerged in the medium. The matching electrode is chosen based on the material of the equipment.
- Separate the wiring of the signal, power, and relay circuits and make sure they are properly grounded.The connectors should also be waterproof sealed.
- Connect the electrode to the host by a fixed line so that pulling doesn’t damage them.
Daily maintenance and calibration
- The host only needs to wipe the surface dust with a dry cloth in daily life, regularly check whether the wiring interface is loose, and there is no need to disassemble and maintain it unless there are special circumstances.
- Utilize the built-in electrode of the device to automatically clean the contact points, regularly initiate the cleaning program, and remove dirt and sediment from the electrode surface; If there are many impurities in the on-site medium, the cleaning frequency can be increased.
- Regularly calibrate the electrodes, with the calibration cycle adjusted according to the working conditions of the medium on site. Generally, calibration is done once every 1-3 months to ensure measurement accuracy.
- Daily inspections focus on the corrosion rate, temperature values, and relay status of the instrument panel. If there are abnormal values or frequent alarms, promptly investigate electrode contamination or circuit faults.
- When the equipment is shut down for a long time, turn off the power supply, remove the electrodes and clean them properly, soak them in a special protective solution for storage, and seal the main unit against dust.
Technical Support
Top 6 Industrial Gas Analyzers Manufacturers 2025
Introduction to Industrial Gas Analyzers Industrial gas analyzers are critical instruments used across numerous sectors to measure and monitor the composition of gas mixtures in various processes. These sophisticated devices…
6 Best Industrial Gas Detector Manufacturers in the World
With industrial safety standards becoming more stringent each year, organizations worldwide are investing in high-precision gas detection technologies. Choosing the Best industrial gas detector manufacturers ensures operational safety, regulatory compliance,…
9 Best Portable Carbon Dioxide Detector 2025 – Complete Buying Guide
Why You Need the Best Portable Carbon Dioxide Detector In today’s world where air quality monitoring has become increasingly important, having the best portable carbon dioxide detector is crucial for…
Top 7 portable combustion analyzer Tested
Introduction to Portable Combustion Analyzers A portable combustion analyzer is an essential diagnostic tool for technicians, engineers, and facility managers working with combustion systems. These sophisticated instruments measure and analyze…
The average corrosion rate controller, model number A11FC, is not only intelligent, accurate, adjustable, simple to use and maintain, and simple to operate, but it is also very simple to understand and use. It provides industrial circulating water systems with professional and dependable methods for measuring and controlling corrosion, which contributes to the maintenance of safe equipment and assists in the smoother running of activities.
