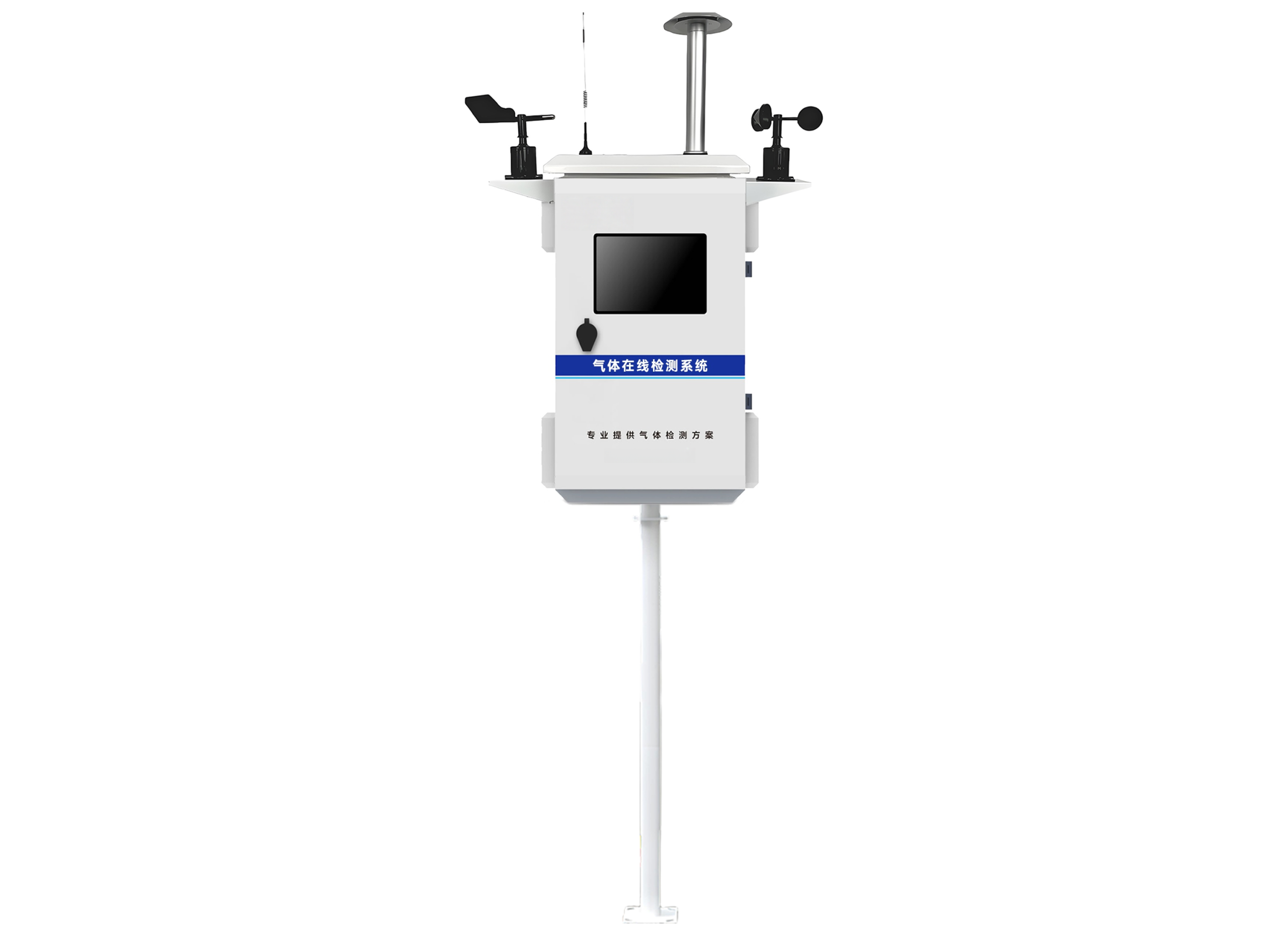

Compact Ambient Air Quality Monitoring System

The Compact Ambient Air Quality Monitoring System(AQMS) is a next-generation online multi-parameter air quality monitoring system. It primarily measures PM2.5, PM10, CO, SO2, NO2, O3, TVOC, various environmental pollutants, particulate matter, and meteorological parameters.

This system is widely used for urban air quality monitoring and industrial air emission pollution monitoring.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • The system offers stable performance, a compact size, and a high cost-effectiveness, making it suitable for grid-based online monitoring.
  • Modular design and pump-type monitoring provide fast response and built-in filtering for easy maintenance.
  • A large 7-inch touchscreen color display perfectly displays all monitoring parameters.
  • A four-electrode gas sensor and three-point calibration ensure measurement accuracy and stability.
  • Data storage and export capabilities allow for storage of 20 million sets of date and time stamped data.
  • A rainproof and dustproof housing and double-layer protective chassis ensure safety.
  • Supports multiple data output methods, including 4-20mA, RS485, and TCP/IP.
  • A comprehensive range of optional features allows for flexible configuration of gas, particulate matter, meteorological, solar power systems, and LED signage modules.

Specifications

Monitoring Factors and Measurement Range
Sulfur Dioxide (SO2)Measuring range0~500ppb;
2000ppb		Detection principleElectrochemistryResolution1ppb
Nitrogen Dioxide (NO2)Measuring range0~500ppb;
2000ppb		Detection principleElectrochemistryResolution1ppb
Ozone (O3)Measuring range0~500ppb;
2000ppb		Detection principleElectrochemistryResolution1ppb
Carbon Monoxide (CO)Measuring range0~5ppm;
20ppm;
50ppm;		Detection principleElectrochemistryResolution0.01ppm
TVOCMeasuring range0~5ppm;
20ppm;
50ppm;		Detection principlePID photoionization (optional)Resolution0.01ppm
PM2.5Measuring range0~500μg/m³Detection principleLight scattering
PM10Measuring range0~2000μg/m³Detection principleLight scattering
Weather MonitoringWind speed, wind direction, temperature, humidity, atmospheric pressure, ambient noise, and light (optional)
Combination Method1-10 gas factors
Particulate matter (PM2.5, PM10)
6-8 meteorological factors (optional)
Total number of monitored factors not exceeding 20 (optional combination)
Sampling methodPump-type

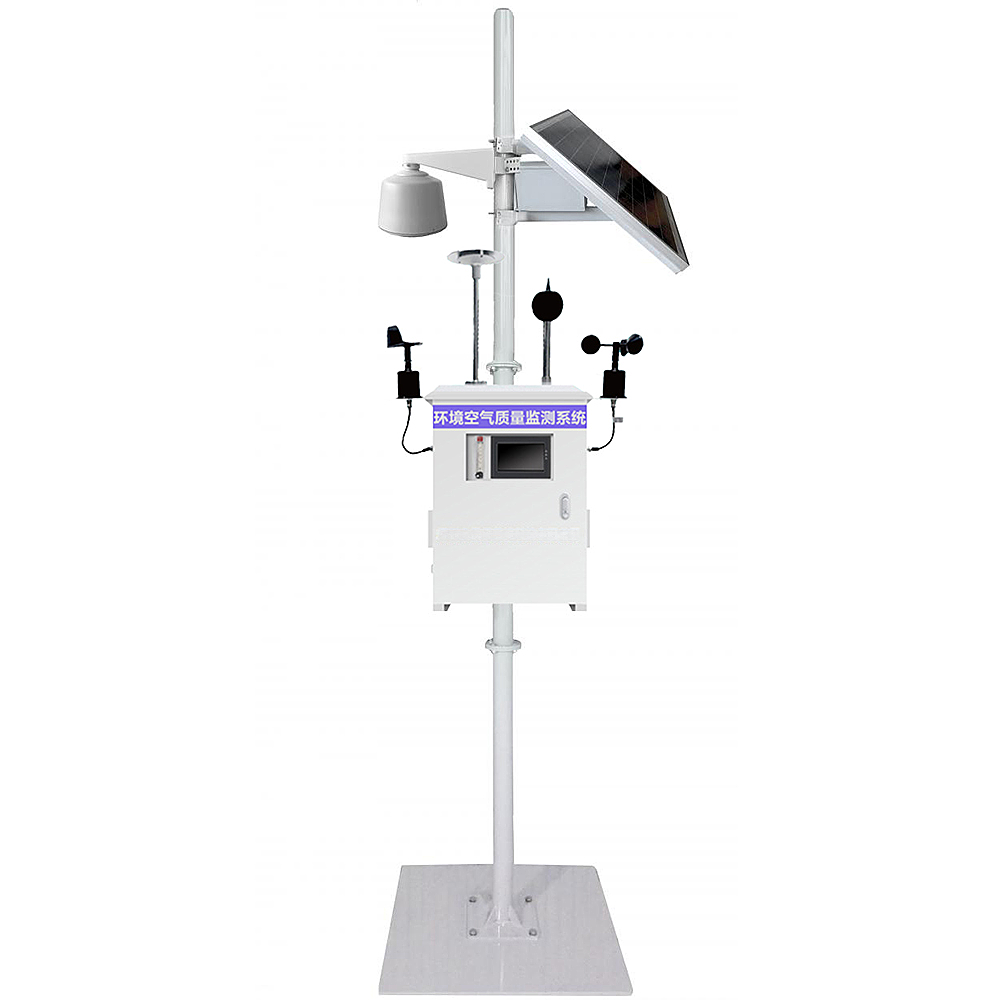

Mounting methodWall-mounted, floor-standing
Indication errorDepends on the specific detection factor; refer to the factory label for accuracy.
Power supply voltageAC180-250V, 50Hz
Output signalRS485 digital output (Modbus RS485)
2 relay outputs
Signal transmission method①RS-485 digital transmission (Modbus RS485)
②Supports HJ212 protocol, compliant with the “HJ212-2017 Pollutant Online Monitoring (Monitoring) System Data Transmission Standard”
③ Supports TCP/IP transmission over the network: TCP/IP protocol, supports transmission up to 90 meters over a network cable, and long-distance real-time transmission via networking (optional).
④ Supports fiber optic transmission: Up to 20 to 40 kilometers (single-mode multi-core fiber optic cable transmission, requires a fiber optic modem), networking is optional.
⑤ Supports short-distance RTU433 wireless transmission: Transmission distance 0 to 2 kilometers, depending on transmission power and site environment (optional).
⑥ Supports GPRS wireless transmission: Unlimited distance (optional).
CalibrationCalibration supports 2-4 levels of calibration.
Display7-inch color touchscreen display (optional)
Touch operation with push buttons (optional)
Data loggingAutomatic data storage, capable of continuously storing over 20 million sets of data with date and time (optional)
Operating temperature-20°C to +60°C (typical)
Operating humidity0% to 85% RH
Case dimensions350mm x 420mm x 190mm (width x height x depth)
Casing materialSPCC (customizable stainless steel)
IP ratingIP65
Case weight20-30kg

How does AQMS work?

The ambient air quality monitoring system can be configured with optional measurement modules for gases, particulate matter, and meteorological parameters based on user needs. It is a new, low-cost, intelligent air quality monitoring device.

The AQMS air quality monitoring system consists of four components: a sampling device, analyzers, a calibration device, and a data acquisition system. Gaseous pollutant analyzers include analyzers for SO2, NO, O3, CO, VOCs, laser gas (HCl, HF, NH3), and a NO2 analyzer (CAPS cavity attenuation phase shift spectrometer). Particulate matter analyzers include PM2.5, PM10, and an extinction analyzer (aerosol analyzer).

The system workflow is as follows:

  • Data Acquisition System: Utilizes sensors and monitoring equipment to monitor the concentrations of various pollutants (such as PM2.5, PM10, NO2, SO2, CO, and O3) in real time.
  • Data Transmission and Storage: Collected data is transmitted to a central processing system via a network or other communication method, where it is stored for analysis and retrieval. Data Analysis and Processing: Utilizes statistical and computational methods to process data and generate air quality reports, trend charts, and air quality assessments.
  • Alarm and Feedback Mechanism: When pollutant levels exceed safety thresholds, automatic alarms are triggered, notifying relevant departments to take urgent action.
  • Decision Support System: Provides decision support for air quality management, assisting governments, environmental protection agencies, and businesses in developing pollution control strategies.

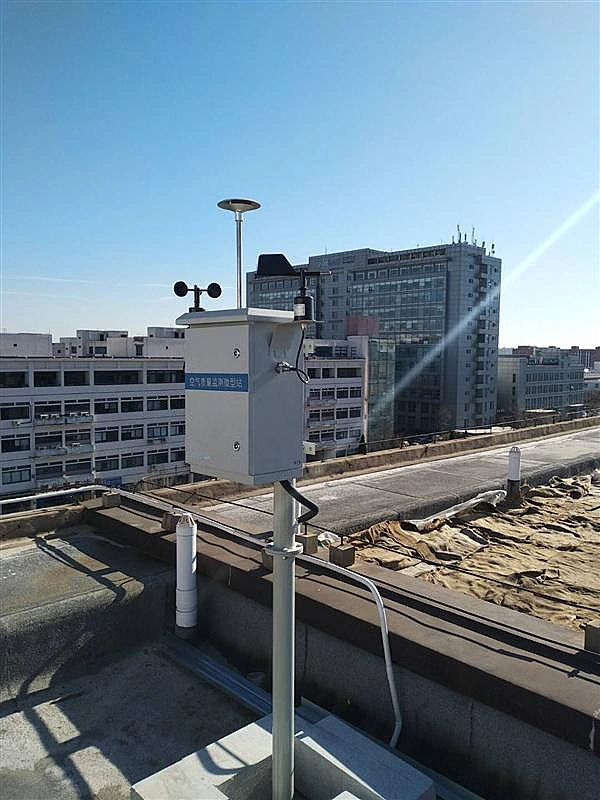

Ambient-Air-Quality-Monitoring-System-installation

Typical Applications

  • Urban air quality monitoring, short-term and long-term air quality trend analysis and evaluation;
  • Grid-based air quality monitoring by relevant management departments at the provincial, municipal, county (district), and town (village or sub-district office) levels;
  • Air quality monitoring in densely populated areas such as communities, schools, and hospitals;
  • Atmospheric monitoring in chemical plants, petrochemical plants, power plants, landfill incineration plants, sewage treatment plants, storage facilities, and underground facilities;
  • Air quality monitoring in urban roads, airports, ports, railways, tunnels, and construction sites;
  • Air quality monitoring in open areas such as parks, woodlands, and crop research sites;
  • Particulate matter and pollution source emission monitoring;
  • Environmental quality assessment;
Call To Action

5 Essential Factors for Choosing Multi Gas Detectors

Posted on
Multi-gas detectors simultaneously measure multiple gases, typically including oxygen (O₂), combustible gases (LEL), carbon monoxide (CO), and hydrogen sulfide (H₂S), which are common threats in industrial environments and confined spaces….

The Compact Ambient Air Quality Monitoring System is used for urban air quality monitoring and industrial air pollution monitoring. It measures various air pollutants, particulate matter, and meteorological parameters.

The Sino-Inst Compact Ambient Air Quality Monitoring System supports external communication interfaces and features data storage and export capabilities. It transmits measurement data to a monitoring center in real time via a wireless data acquisition and transmission terminal and allows remote control via a web browser.

If you require configuration of the Ambient Air Quality Monitoring System or have any technical questions, please feel free to contact us!
