Portable Dust Monitor

Portable Dust Monitor is mainly used to quickly detect the concentration of dust and particulate matter such as PM2.5 and PM10 in the environment. And sound, light and vibration alarms are issued when the concentration exceeds the limit.

Portable Dust Monitor can measure the number of dust particles of various sizes at the same time. It can detect up to 4-6 particle sizes at the same time: PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10. It can also be equipped with temperature and humidity measurement function (optional).

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • Rich human-machine interface: real-time display of dust concentration and dust filtration efficiency;
  • Large-capacity data storage function (100,000 records);
  • Support local viewing and deletion of data;
  • Multiple communication interfaces and printing functions;
  • Standard USB charging, with charging protection function;
  • Adopts 4000mA large-capacity rechargeable polymer battery;
  • Meet the requirements of intrinsically safe circuit design, anti-static, anti-electromagnetic interference;
  • Protection level reaches IP65, splashproof, dustproof, explosion-proof, and shockproof;

Specifications

Laser light sourceSemiconductor laser diode, life span>100000 hours
Measurement of particle size0.3um, 1.0um, 2.5um, 10um (four channels)
0.3um, 0.5um, 1.0um, 2.5um, 5.0um, 10um (six channels)
Overlap errorLess than 15% at 2.000.000 particles per cubic foot
Working power supply4000mA rechargeable polymer battery
Detection methodTiming detection and real-time detection can be set
Working humidity≤90%RH, no condensation
Case materialABS+PC
Working temperature5~45℃℃
Alarm modeCustomizable quantity alarm value, quality alarm value
Explosion-proof markEx ia llC T4 Ga
Protection levelIP65
Detection modeQuantity mode PC, quality mode ug/m3, switchable Real-time concentration detection mode, purification efficiency detection mode (detection time can be set), switchable
Communication interfaceRS232-USB, 9600 baud rate, optional Bluetooth communication interface, automatic identification
Temperature and humidity(Optional) Temperature and humidity sensor, temperature range: -40 ~ 120℃, humidity range: 0-100%RH
Dimensions and weight220*85*55 mm (LxWxH), 0.5 Kg (net weight of instrument)
Standard accessoriesInstrument box, manual, certificate, USB charger + data cable, calibration cover
Storage modeReal-time storage and timed storage can be set; 120,000 groups of data can be stored, and historical data can be viewed on the screen

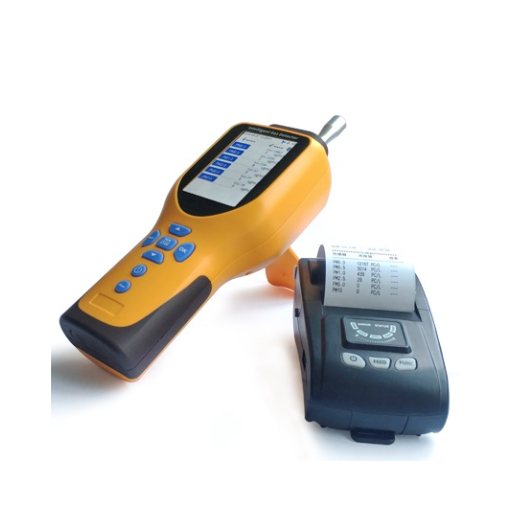

Printing modeOptional micro printer to print data, can set printing cycle, automatic printing, manual printing
Optional accessoriesMicro thermal printer, micro wireless Bluetooth printer

Applications:

Portable Dust Monitor can be used to monitor dust particle concentration in various dust-free workshops, clean rooms, public environments and other places.

It is the preferred instrument for production and scientific research units such as biopharmaceuticals, medical devices, beverage packaging, food hygiene, fine chemicals, atmospheric research, air purification and treatment.

  • Ambient air quality monitoring: Used to monitor inhalable particulate matter in ambient air, such as PM1.0, PM2.5, PM10 and total suspended particulate matter (TSP).
  • Workplace monitoring: Monitor dust concentration in industrial production, construction sites and other environments to protect the health of workers.
  • Air quality assessment: Evaluate air quality by detecting particulate matter concentration, especially suitable for indoor environments, industrial sites and construction sites.
  • Environmental safety monitoring: Help relevant departments or enterprises monitor dust concentration to ensure compliance with safety and environmental protection standards.
  • Health protection: Provide air pollution warnings for indoor or on-site personnel to protect their health.

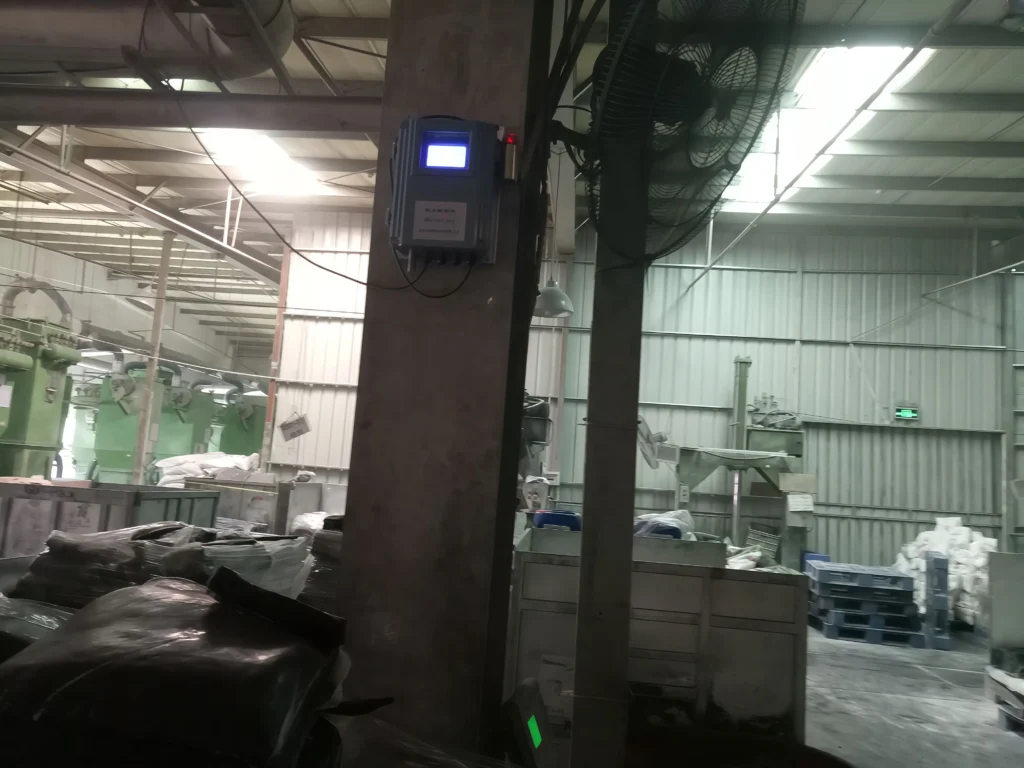

Dust-monitoring-in-food-processing-workshops

How Gas Detectors Work: 4 Key Sensor Types

Posted on
A gas detector is a safety device designed to identify the presence of specific gases within an area, often as part of a system to alert personnel to hazardous conditions….

5 Essential Factors for Choosing Multi Gas Detectors

Posted on
Multi-gas detectors simultaneously measure multiple gases, typically including oxygen (O₂), combustible gases (LEL), carbon monoxide (CO), and hydrogen sulfide (H₂S), which are common threats in industrial environments and confined spaces….

Portable Dust Monitor can quickly and easily measure the concentration of dust particles in the air, including PM2.5, PM10, etc. It is widely used in industry, environmental protection, occupational health, construction and scientific research. Help monitor and control dust concentration to ensure health and safety.

Sino-Inst provides various types of dust detectors. Covering multiple fields such as industrial production, construction, environmental protection, occupational health, special environment and scientific research. Different working conditions have different performance requirements for dust detectors, and you need to choose the right instrument according to your specific needs.

If you need to purchase a Portable Dust Monitor, or have related technical questions, please feel free to contact our sales engineer!
