Dust Detector-PM100/TSP Monitor

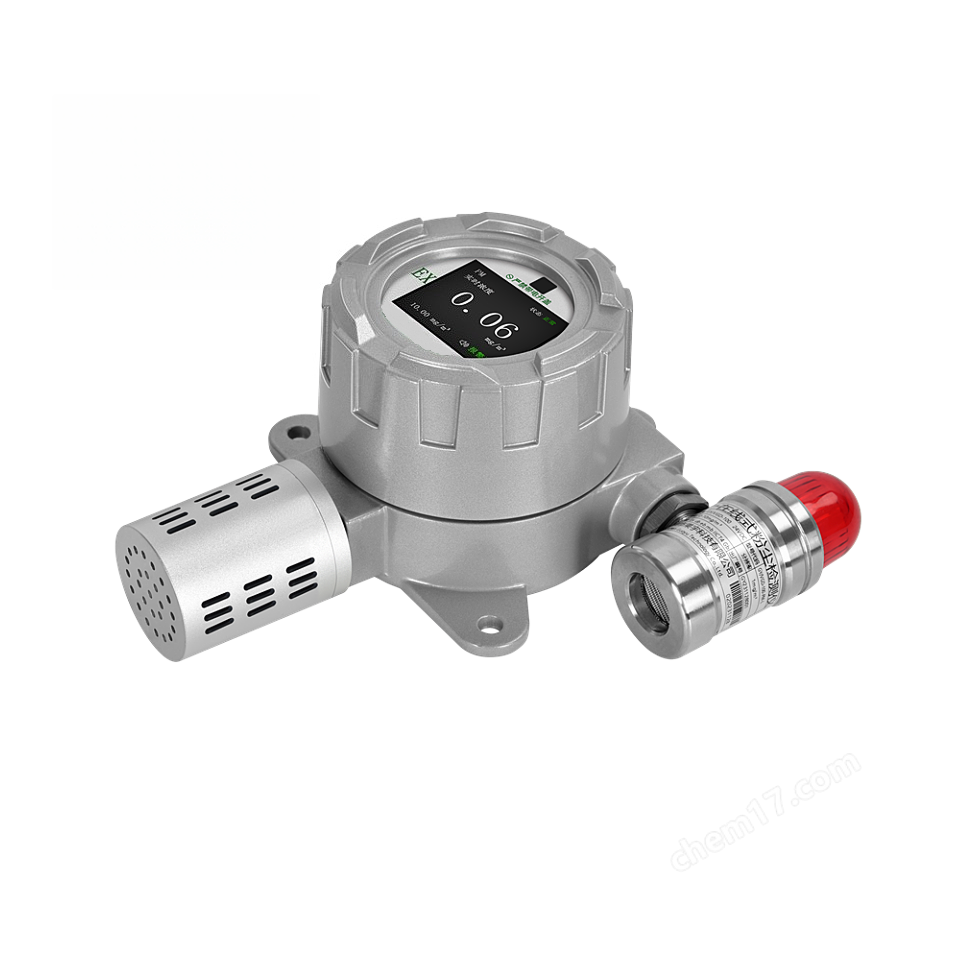

PM100/TSP Monitor is a fixed Dust Detector that can continuously detect total suspended particulate matter in the working air.

Through continuous 24-hour online detection and sound and light alarm of dust (PM2.5/PM10/TSP) or particulate matter (the number of particles with a particle size of 0.3um/0.5um/1.0um/2.5um or more) in the atmosphere, it can control the dust concentration or the number of particulate matter in various occasions, and timely protect the safety of life and property in various sites.

★★★★★

  • Short delivery time
  • Better price
  • Customizable parameters

Features

  • On-site large-screen multi-parameter LCD display with backlight, intuitively displays dust concentration, type, unit, working status, etc.;
  • Two-level alarm setting, two sets of relay passive signal output;
  • Standard RS485 signal: using standard MODBUS RTU protocol, transmission distance <1km;
  • Standard 4~20mA analog signal output;
  • With overvoltage protection, lightning protection, short circuit protection, reverse connection protection, anti-static interference, anti-magnetic field interference and other functions
  • And with automatic recovery function to prevent any external reasons, human reasons, natural disasters, etc. from causing damage to the detector;

Specifications

Detection gasTotal suspended particulate matter (TSP), dust particles (PM1, PM2.5, PM10)
SensorLaser sensor
Detection methodDiffusion type
Installation methodWall-mounted, pipe type
Measurement rangeSmall range: 0-1000/2000/4000/6000/8000/9999ug/m³; Large range: 0-10/100/1000mg/m³ (range can be customized)
Resolution0.001, 0.01, 0.1, 1 (depending on the range)
Detection error≤±5%F.S (≤5% within the full range)
Working voltageDC24V (12V～30V)
RelayTwo sets of relay outputs, contact capacity: AC250V3A/DC30V3A
Explosion-proof markExib lCT4 Gb/Exib lllCTzo130’C Db
Shell materialDie-cast aluminum, explosion-proof and corrosion-resistant
Detector size285*154*110 (length*width*thickness) mm
Working temperature25°C~+55°C
Working pressure86kPa~106kPa
Connection portSee the dimension diagram for details
Working humidity<95%RH, no condensation
Detector weight2.0kg
Output signal①4-20mA signal: standard 12-bit precision 4-20mA output chip, transmission distance 1Km
②RS485 signal: standard MODBUS RTU protocol, transmission distance 1Km
③Voltage signal: 0.4-2V, 0-5V, 0-10V output, optional (voltage output and current output, one of two)
④Switch signal: standard 1 set of passive contact relay, capacity 220VAC 3A/24VDC 3A
⑤GPRS, 4G, WIFI, LORA, ZigBee and other wireless signals
Response time (T90)≤30S
Working temperature-20℃~50℃(Special requirements: (-40℃~+70℃)
Working humidity10-95%RH (non-condensing)
Explosion-proof formThe probe transmitter and sensor are both explosion-proof.
Optional accessoriesTemperature and humidity measurement, 220V to 24V power adapter.
Computer monitoring accessories: free host computer software, USB to RS485 conversion cable, if you want network transmission, you also need RS485 to network port converter

Permissible Dust Concentration in Workplace Air

Please consult sales staff for questions about the exposure limits of various types of dust and the hazards to the human body at certain concentrations.

No.NameChemical Abstracts Number (CAS No.)PC-TWA(mg/m3)
Total dustRespirable dust
1Dolomite dust84
2FRP dust3–
3Tea dust2–
4Precipitated silica dust112926-00-85–
5Marble dust1317-65-384
6Welding fume4–
7Titanium dioxide dust13463-67-78–
8Zeolite dust5–
9Phenolic aldehyde resin dust6–
10Grain dust(free SiO2<10%)4–
11Wollastonite dust13983-17-05–
12Diatomite dust(free SiO2<10%)61790-53-26–
13Talc dust (free SiO2<10%)14807-96-631
14Active carbon dust64365-11-35–
15Polypropylene dust5–
16Polyacrylonitrile fiber dust2–
17Polyvinyl chloride (PVC) dust9002-86-25–
18Polyethylene dust9002-88-45–
19Aluminum dust：
Metal & alloys dust
Aluminium oxide dust		7429-90-53
4		–
20Hemp dust (free SiO2<10%)
Flax
Jute
Ramie		1.5
2
3		–
–
–
21Coal dust(free SiO2<10%)42.5
22Cotton dust1–
23Wood dust3–
24Condensed silica dust1.50.5
25Bentonite dust1302-78-96–
26Fur dust8–
27Man-made vitreous fiber
Fibrous glass dust
Slag wool dust
Rock wool dust		3
3
3		–
–
–
28Mulberry silk dust8–
29Grinding wheel dust8–
30Gypsum dust10101-41-484
31Limestone dust1317-65-384
32Asbestos（Asbestos＞10%）
dust
Asbestos fibre		1332-21-40.8
0.8f/ml		–
–
33Graphite dust7782-42-542
34Cement dust (free SiO2<10%)41.5
35Carbon black dust1333-86-44–
36Silicon carbide dust409-21-284
37Carbon fiber dust3–
38Silica dust
10%≤free SiO2≤50%
50%＜free SiO2≤80%
free SiO2＞80%		14808-60-71
0.7
0.5		0.7
0.3
0.2
39Rare earth dust (freeSiO2<10%)2.5–
40Detergent mixed dust1–
41Tobacco dust2–
42Fluorspar mixed dust10.7
43Mica dust12001-26-221.5
44Perlite dust93763-70-384
45Vermiculite dust3–
46Barite dust7727-43-75–
47Particles not otherwise regulated a8–
a: Refers to dust with free SiO2 less than 10%, no asbestos and toxic substances, and no allowable concentration has been established. All kinds of dust listed in the table (except asbestos fiber dust) with free SiO2 higher than 10% are treated as silica dust allowable concentration.
For dust, the excessive fluctuation of its short-term exposure level is controlled by the over-limit multiple. Under the premise of meeting PC-TWA, the over-limit multiple of dust is 2 times of PC-TWA.

What is the Difference between TSP, PM10, and PM2.5?

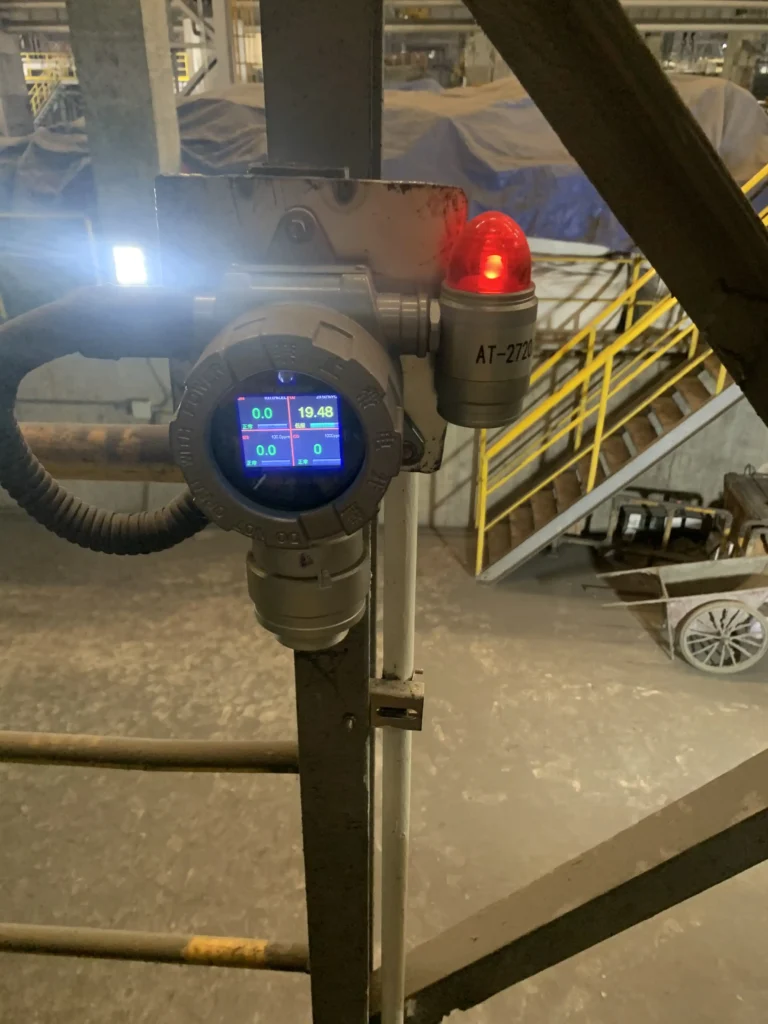

Total Suspended Particulate Matter TSP Monitor

Suspended particles in the air are dust. If the content of these suspended particles in the air is high, it will cause air pollution. The various substances contained in these dust particles can affect human health. Dust particles can usually be divided into: total suspended particles (TSP), inhalable particles (PM10), and fine dust particles (PM2.5). Here I will introduce the differences and relationships between these three types of particles.

The main difference between the three types of particles, total suspended particles (TSP), inhalable particles (PM10), and fine dust particles (PM2.5), is the size of the particle diameter.

  • TSP, also known as PM100, total suspended particles, refers to particles suspended in the air with an aerodynamic equivalent diameter of ≤100μm.
  • PM10 refers to particles with a dynamic diameter of ≤10μm.
  • PM2.5 refers to particles with a dynamic diameter of ≤2.5μm.

Among them, PM2.5 and PM10 particles are particles that can be inhaled by the human body. Because these particles contain a large amount of impurities, many of which are toxic substances and can cause harm to the human body.

TSP and PM10 and PM2.5 have a layered relationship of inclusion, that is, PM10 is part of TSP, and PM2.5 is part of PM10. The results show that the weight ratio of PM10/TSP is 60%~80%, while the weight ratio of PM2.5/PM10 is 50%~70%. If you want to detect the concentration of PM2.5 and PM10 in the air, you can use a dust concentration detector to detect it.

Featured Applications of Dust Detectors

  • Cyclone separators, dust collectors or dust emission control equipment that need to continuously monitor particles;
  • Dust detectors are also needed in multi-point monitoring and plant dust production processes;
  • Air purifier/ventilation system and indoor and outdoor air quality monitoring;
  • Some workshops need to use dust detectors to continuously monitor the integrity of online filters;
  • Air quality monitoring of underground transportation systems;
  • Laboratories or dust-free workshops for aerosol exposure research;
  • Control and monitoring in the process of drying solids;
  • Dust detectors can also be used for all air particulate emission monitoring applications;
  • Ecological and environmental protection monitoring key to gas construction site dust, PM10, PM2.5, TSP detection, pollutant investigation, etc.;
  • Disease prevention core and health supervision institute monitoring and supervision of inhalable particulate matter concentration in public places;
7 Critical Factors for Choosing an Online Gas Detector

Technical Support

Total suspended particulate matter (TSP) refers to particles suspended in the air with an aerodynamic equivalent diameter of 100μm or less. It is a common air pollutant, along with PM10 and PM2.5, and is commonly used as an air quality assessment indicator.

It can be divided into primary particulate matter (TSP) and secondary particulate matter (TSP). The former is emitted directly from natural or anthropogenic sources (such as dust and industrial smoke), while the latter is generated through atmospheric chemical reactions (such as sulfates converted from sulfur dioxide). Primary sources include fuel combustion, industrial dust, construction dust, and salt particles converted from gaseous pollutants.

First, dust and particulate matter can be harmful to human health. Inhalation can cause respiratory irritation and serious illnesses, such as bronchitis and chronic obstructive pulmonary disease. Some dusts also contain harmful substances, such as heavy metals like lead and mercury in metal dust, which can cause organ damage and toxic effects.

Furthermore, the presence of dust and particulate matter can cause air pollution. For example, dust can reduce air quality, affecting plant growth and soil quality.

Finally, a crucial factor in industry is the potential for explosion. Combustible dust suspended in the air, also known as explosive dust, reaches its lower explosive limit and, upon contact with a fire source, can instantly ignite. The high temperatures cause the gas mixture within the confined space to rapidly expand and increase pressure, resulting in a dust explosion.

Dust explosions typically occur in relatively confined spaces, where the heat and high-pressure gases from the explosion trigger a chain reaction. Any space reached by dust particles can experience a sudden surge of heat and pressure, resulting in extremely serious consequences.

How Gas Detectors Work: 4 Key Sensor Types

Posted on
A gas detector is a safety device designed to identify the presence of specific gases within an area, often as part of a system to alert personnel to hazardous conditions….

5 Essential Factors for Choosing Multi Gas Detectors

Posted on
Multi-gas detectors simultaneously measure multiple gases, typically including oxygen (O₂), combustible gases (LEL), carbon monoxide (CO), and hydrogen sulfide (H₂S), which are common threats in industrial environments and confined spaces….

Sino-Inst industrial-grade explosion-proof dust concentration detector can monitor its concentration online in real time 24 hours a day. It is suitable for dust particles (PM1, PM2.5, PM10, TSP).

Sino-Inst’s PM100/TSP Monitor outputs various standard signals and is compatible with various alarm systems, PLC, DCS and other control systems. It is widely used in coating, packaging, metallurgy, flour processing, coal mining, casting and grinding, shipping, environmental protection, telecommunications, medical and other industries.

If you need dust monitoring, please feel free to contact our sales engineers!
